Home Ningbo A-ok Trading Co., Ltd. 2016 Newest Four Wheels Mobility Scooter for Old Pepole (MS-002)

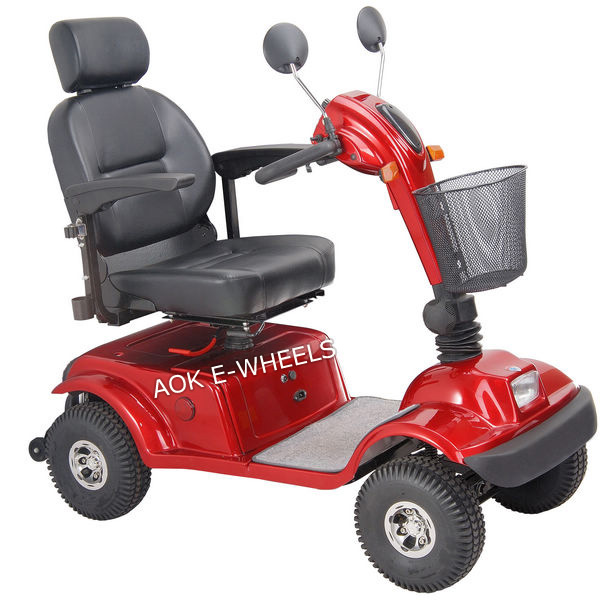

2016 Newest Four Wheels Mobility Scooter for Old Pepole (MS-002)
| Price: | US $ 844-928.4/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Paypal,Western Union |
Specifications
| Prod Model: | MS-002 |
|---|---|
| Max. Forward Speed: | 12.5km/H(Adjustable) |
| Max. Backward Speed: | 6-8km/H(Adjustable) |
| Groune: | 100mm/ 3.94in |
| Turning Radius: | 1.7m/66.92in. |
| Braking Distance: | 1.6m/63in |
| Net Weight: | 105kg/231.5lbs(with 2 Batteries) |
| Battery Weight: | 13.8kg/30.43lbs X 2 |
| Dimensions: | 1420 X 660 X 1250mm |
| Packing Size: | 20' FCL/48PCS 40'hq/100PCS |
| Body: | 1380 X 670 X 570mm |
| Climbing Capability: | 15?? |
| Certification: | CE |
| Folded: | Unfolded |
| Voltage: | 24V |
| Load Capacity: | 160kg/352.74lbs |
| Accessories: | Crutch Support/Caution Light /Dust Cover/Rear Bask |
| Power: | 600W |
Product Description
2016 Newest Four Wheels Mobility Scooter for Old Pepole(MS-002)| Specification |
| Motors: 24V 600W (Made in Taiwan) |
| Battery: 12V 40Ah(50Ah) x 2 lead acid battery |
| Controller:PG/Curtis |
| Charger: 24V5A battery charger |
| Charge time: 6-8h recommended |
| Front Tyres: 12"*4.00-4 |
| Rear Tyres: 12"*4.00-4 |
| Max. forward speed: 12.5km/h(adjustable) |
| Max. backward speed: 6-8km/h(adjustable) |
| Ground clearance: 100mm/ 3.94in |
| Turning radius: 1.7m/66.92in. |
| Braking distance: 1.6m/63in |
| Climbing capability: 15° |
| Weight capacity: 160Kg/352.74lbs |
| Net weight: 105kg/231.5lbs(with 2 batteries) |
| Battery weight: 13.8kg/30.43lbs x 2 |
| Dimensions:1420 x 660 x 1250mm |
| 55.9 x 25.98 x 49.21in. |
| Packing size: |
| Body: 1380 x 670 x 570mm |
| 54.33 x 26.38 x 22.44in. |
| Seat: 530 x 510 x 350mm |
| 20.86 x 20.07 x 13.78in. |
| 20' FCL/48pcs 40'HQ/100pcs |
| Optional Parts |
| Crutch support |
| Caution light |
| Dust cover |
| Rear basket |
| Canvas cover with frame |
| Sunshield: single/double seat |
Warranty |
| We have warranty for four main components:Motor,Battery,Charger,and Controller. |
| 1)The motor:1 year |
| 2)Battery:8 months |
| 3)Charger:1 year |
| 4)Controller:1 year |
| Business Terms: |
| 1).Payment terms: 100% payment in advance to start production,when you buy the sample. |
| 30% T/T in deposit to start production, the balance in 7 days by T/T against the copy of Bill of lading. |
| L/C at sight(when the amount above 30000 dollars) |
| 2).Delivery time: 40 days. |
| 3).Certificate: CE |
| 4).MOQ: 5 pcs |
