Home Ningbo A-ok Trading Co., Ltd. 2016 Newest 600W/800W 4 Wheels Mobility Scooter with Disk Brake (MS-003)

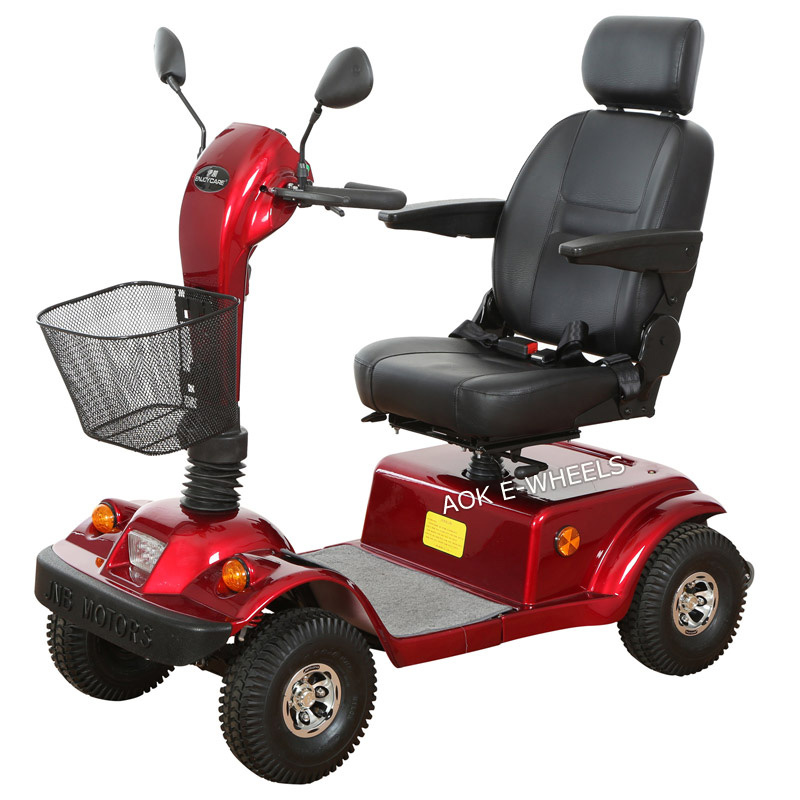

2016 Newest 600W/800W 4 Wheels Mobility Scooter with Disk Brake (MS-003)

2016 Newest 600W/800W 4 Wheels Mobility Scooter with Disk Brake (MS-003)
Price: US $ 878-965.8/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,Paypal,Western Union

Specifications

Prod Model: MS-003
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor: 24V 600W/800W (Made in Taiwan)
Controller: Pg/Curtis
Charger: 24V5a or 6A Battery Charger
Front Tyres: 12"*4.00-4
Rear Tyres: 12"*4.00-4
Wheel Base: 915mm/26.02"
Wheel Track: 550mm/21.65"
Manual Brake: Disc Brake
Max. Forward Speed: 12.6km/H(Adjustable)
Max. Backward Speed: 2.8km/H(Adjustable)
Climbing Capability: 15??
Certification: CE
Folded: Unfolded
Voltage: 24V
Load Capacity: 170kg
Accessories: Crutch Support /Caution Light / Dust Cover
Power: 600W/800W

Product Description

             2016 Newest 600W/800W 4 Wheels Mobility Scooter With Disk Brake(MS-003)



Specification
Motors: 24V 600W/800W (Made in TaiWan)
Battery: 12V 40Ah(55Ah) x 2 lead acid battery
Controller:PG/Curtis
Charger: 24V5A or 6A battery charger
Charge time: c
Front Tyres: 12"*4.00-4
Rear Tyres: 12"*4.00-4
Wheel base: 915mm/26.02"
Wheel track:550mm/21.65"
Maual brake: disc brake
Max. forward speed: 12.6km/h(adjustable)
Max. backward speed: 2.8km/h(adjustable)
Ground clearance: 80mm/3.15in.
Turning radius:1.9m/74.8066.92in.
Braking distance: 1.6m/63in.
Climbing capability: 15°
Weight capacity: 170kg/374lbs
Net weight: 105kg/231.5lbs(with 2 batteries)
Battery weight: 13.8kg/30.43lbs x 2
Dimensions:1450 x 660 x 1250mm
                    59.18 x 25.98 x 49.21in.
Packing size:
Body: 1460 x 710 x 660mm
         57.48 x 27.95 x 25.98in.
Seat: 530 x 510 x 350mm
         20.86 x 20.07 x 13.78in.
20' FCL/48pcs 40'HQ/100pcs





Optional Parts
Crutch support
Caution light
Dust cover
Rear basket
Canvas cover with frame
Sunshield: single/double seat





Warranty
We have warranty for four main components:Motor,Battery,Charger,and Controller.
1)The motor:1 year
2)Battery:8 months
3)Charger:1 year
4)Controller:1 year





Business Terms:
1).Payment terms: 100% payment in advance to start production,when you buy the sample.
                                     30% T/T in deposit to start production, the balance in 7 days by T/T against the copy of Bill of lading.
                                     L/C at sight(when the amount above 30000 dollars)
2).Delivery time: 40 days.
3).Certificate: CE
4).MOQ: 5 pcs




We do business with foreign clients on the basis of equality and mutual benefit.



Please feel free to ask any question in any time,i will spare no efforts to comply with your requirements.


Welcome to contact me do not hesitate
