Specifications
Prod Model: |
MS-012 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Carton Size: |
107*55*57cm |
Driving Type: |
Electric |
Loading Type: |
Sitting Type |
Weight: |
100kgs |
Style: |
Midsize |
Product Description

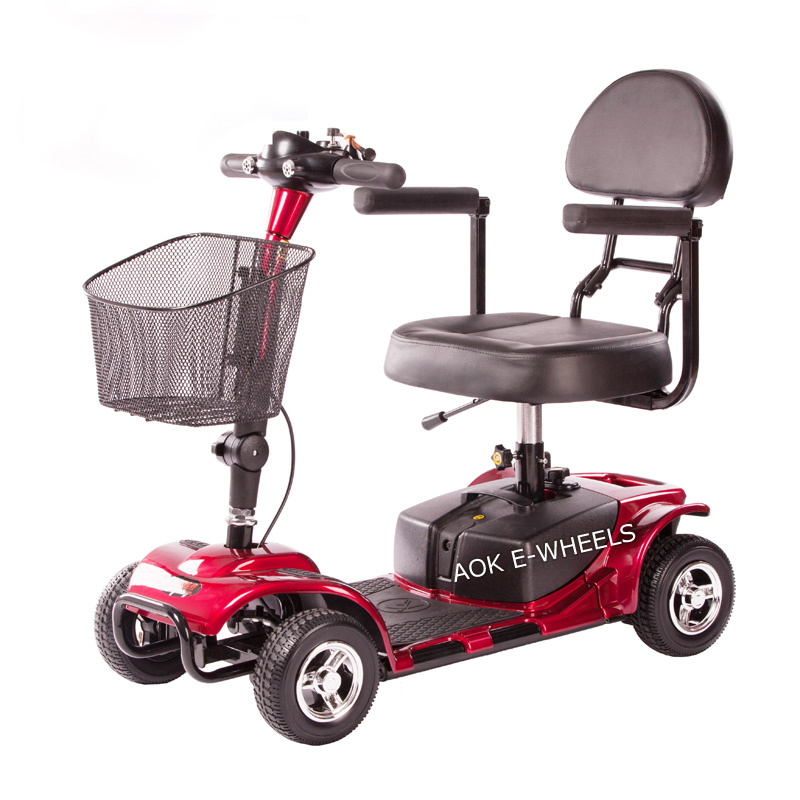

180W New Taiwan Motor Disabled Electric Mobility Scooter with PG Controller
Specification
Specification: | Motor | DC 180W (made in Taiwan) |
Battery | 12V 12AH*2Pcs |
Controller | PG |
Charger | DC 220V, 50Hz, 2A |
Charge time | 8~10h recommended |
Controller max output current | 50A |
Wheel Size | 8 inch |
Performance & Main components
Performance & Main components | Driving Range | 15~20km |
Max Speed | Forward: 8km/h; backward: 3.5km/h |
Brake | Automatic electromagnetic |
Drive method | Singer motor |
Radius of gyration | ≤1.0m |
Max grade ability | ≤1.4m |
Max climbing angle | 12° |
Armrest Height | 200mm |
Seat Width | 450mm |
Seat Length | 430mm |
Height between seat and ground | 500mm |
Folded Width | 310mm |
Backrest Height | 420mm |
Pedal height | 90mm |
Packaging&Delivery
Packaging Details: | Overall size | 1136mm*615mm*935mm |
Net weight | 41kg |
Gross weight | 51kgs |
Loading weight | 100kg |
Carton size | 107*55*57cm |
Delivery Details: | 15 days |
