Specifications
Prod Model: |
KG250S-29 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Normal Color: |
Red/Camouflage |
Engine Type: |
4 Stroke |
Structure: |
Without Door |
Displacement: |
250CC |
Transmission System: |
Shaft Drive |
Fuel: |
Gas / Diesel |
Brake Type: |
Drum Brake |
Maximum Speed: |
50-75 km/h |
Power: |
>1000W |
Certification: |
ISO9001 |
Condition: |
New |
Transmission Type: |
Electric |
Brand: |
Kyngo |
Product Description

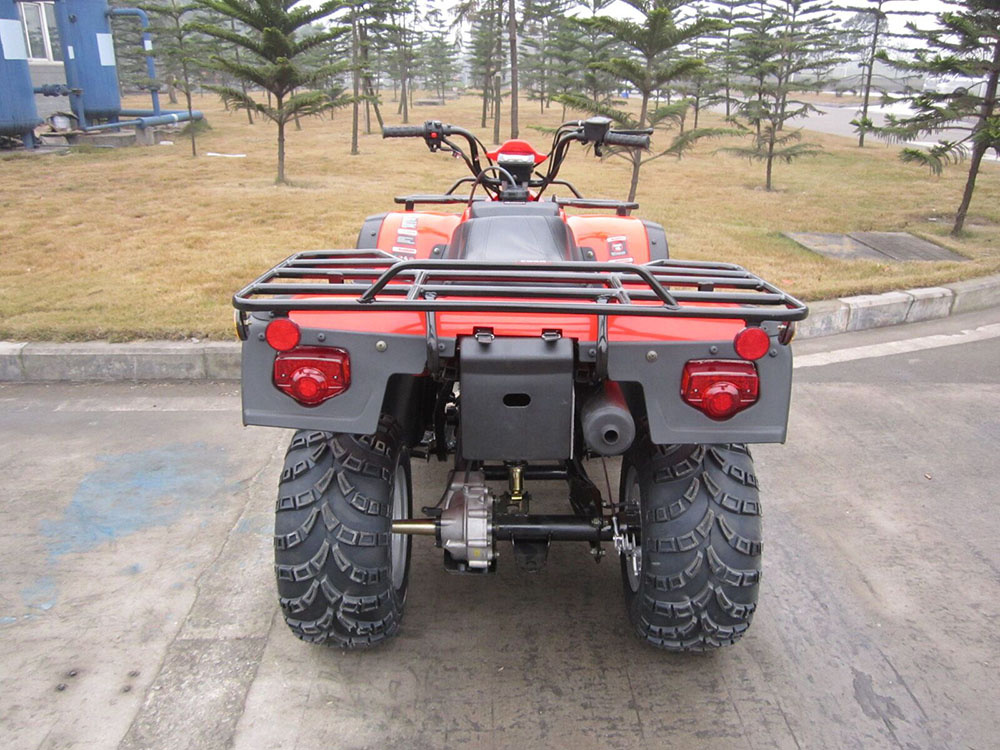

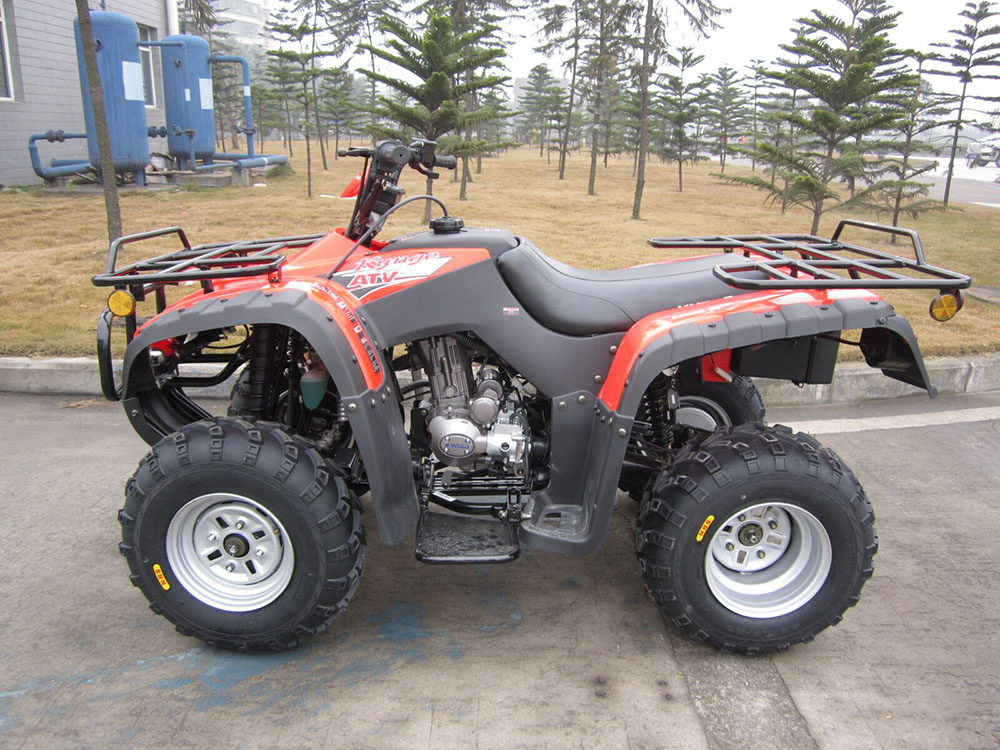

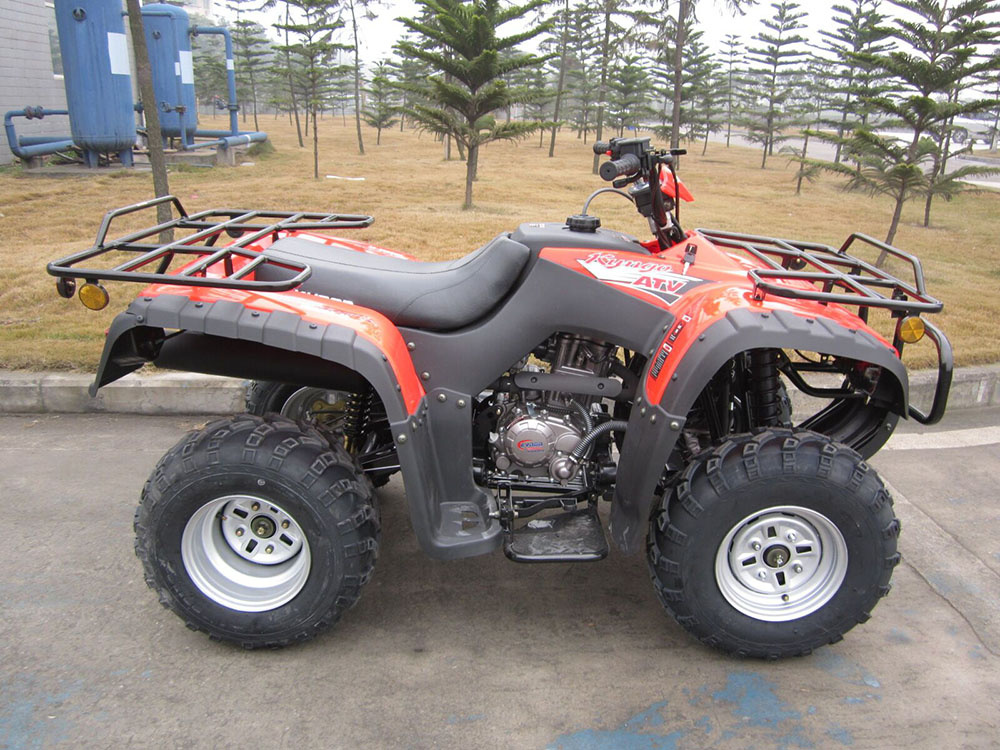

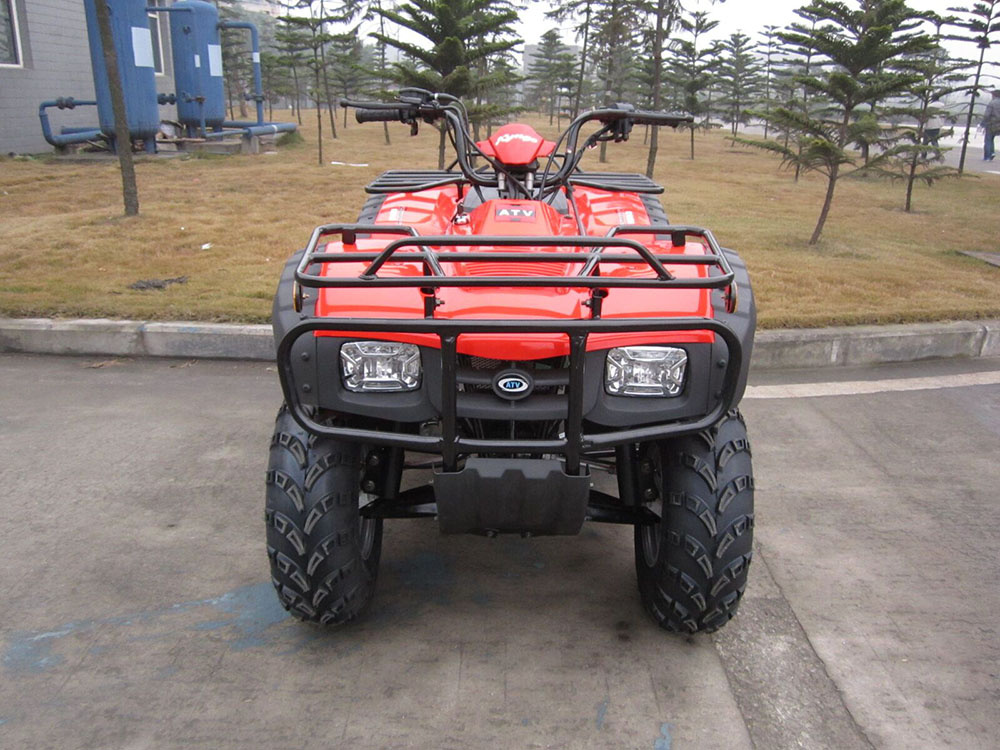

HOT SALE SPORTS ATV WITH ZONGSHEN BRAND 250CC WATER COOLED ENGINEMain Instructions:
KG250S-29 ATV,ZONGSHEN 250cc Water- cooled engine, Manual Clutch, Alloy wheels, Front & rear drum brakes, Elec. Starter,digital speedometer
Technical data: |
Engine |
|
Type: | single cylinder, water-cooling, four-stroke |
Ignition mode: | CDI |
Compression proportion: | 10.5:1 |
Start mode: | electric |
Fuel tank capacity: | 11L |
Transmission mode: | axis |
Power: | 10.5kW/7,500rpm |
Max. torque | 15Nm/5,500rpm |
Min. ground clearance: | 155mm |
Max. speed | ≥55km/h |
Power source: | 12V, 14Ah |
Transmission: | 5 gears, manual clutch |
Cylinder size: | 63.5 x 62.2mm |
Engine oil: | 1.3L |
Gear oil: | 0.25L |
Lubrication: | press splash |
Displacement: | 246.9ml |
Parking trig: | mechanical lock |
Chassis |
|
Front wheels: | 23 x 7 - 10 |
Rear wheels: | 22 x 10 - 10 |
Break type (F/R): | drum/drum |
Front hanging: | single arm-swing |
Rear hanging: | integral |
Dimensions |
|
Product dimensions : | 1,850 x 1,030 x 1,130mm |
Carton dimensions: | 1,970 x 1,110 x 880mm |
Wheelbase: | 1,160mm |
Height of seats: | 820mm |
Dry weight: | 230kg |
Load capacity: | 165kg |
Climbing degree: | ≥25° |
Min. turning radius: | 2,900mm |
Max. number of riders: | 1 |
Others |
|
Conveyance: | Qty/20' GP: 12 units |
Qty/40' GP: 24 units |
Qty/40' HQ: 36 units |
color: | red/yellow/blue/green/camouflage |
Delivery Time: | 50 days upon your advance payment |
