Home Jiayu Machinery Co., Limited 2014 New Hot Sale Model EEC Scooter (Spider-50K)

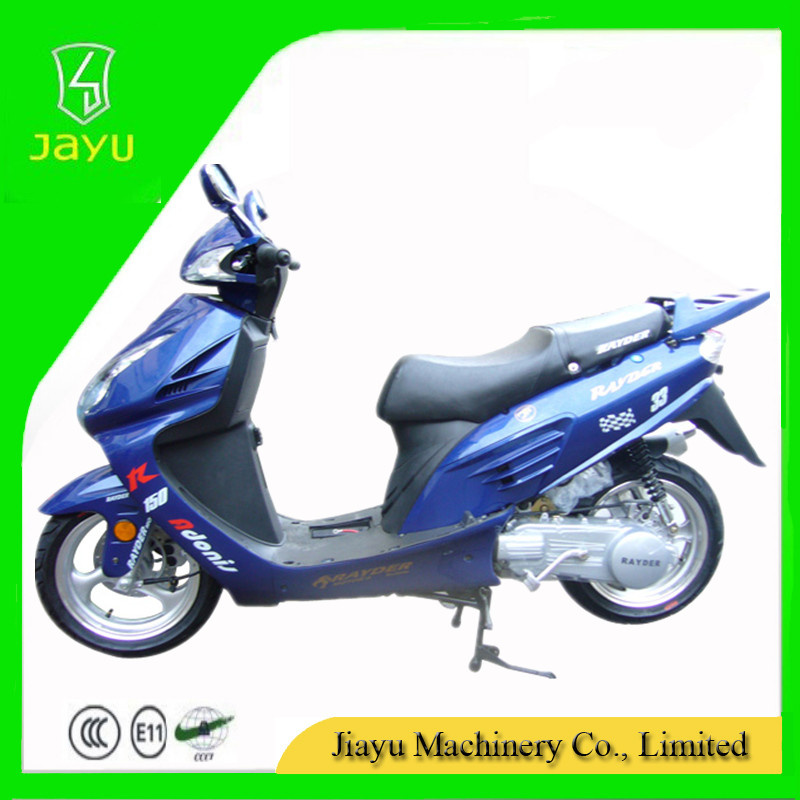

2014 New Hot Sale Model EEC Scooter (Spider-50K)
| Price: | US $ 485/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 26/Piece |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | JY50QT-9K |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | Red, Yellow , White |
| Engine: | 4 Stroke |
| Displacement: | ≤50CC |
| Certification: | COC |
| Folded: | Unfolded |
| Max Speed: | 60km/H |
| Maximum Loading Capacity: | 150kg |
| Fuel Tank Capacity: | 6.5L |
Product Description
2014 new hot sale model eec scooter (Spider-50K) 1.High quality and comfortable seat 2.Windshield included 3.Meet Euro III/ DOT/ EPA emission standard 4.Optional:Alarm anti-theft system| Scooter body parameter | |
| MODEL | JY50QT-9K (SPIDER-50) |
| Dimensions (mm): | 1980 x 700 x 1160 |
| Wheel base (mm): | 1380 |
| Ground clearance (mm): | 110 |
| Dry weight / Load capacity: (kg) | 125 / 150 |
| Max.speed (km/h) : | 55 |
| Economic fuel consuption (1/100km/L) : | 2.1 |
| Exhaust system : | Mute exhaust |
| Fr brake / Rr brake : | disc/drum |
| Fr tyre / Rr tyre : | 130/60-13 |
| Fuel tank capacity (L) : | 6.5 |
| Battery | 12V 7AH |
| Ignition | CDI |
| Front suspension : | hydraulic |
| Rear suspension : | Spring shock absorber |
| Scooter Engine parameter | |
| Engine mode: | 139QMB |
| Engine type | 1-cylinder,air-cooled, 4-stroke |
| Displacement (cc) : | 49.5 |
| Cylinder Diameter / Pinston Stroke | 39 x 41.5 |
| Transmission system : | Belt CVT |
| Compression ratio | 10.3:1 |
| Start system : | kick / electric |
| Standard power(km/r/min): | 2.2/7500 |
| Max. torque(n.m/r/min): | 3.5/4500 |
| Packing information | |
| N.W / G.W (KG)/Packing model | 115 / 130 |
| Pack model | Full export carton package |
| Packing size(mm) /20GP(CBU) | 1960 X 570 X 1200 / 24PCS |
| Packing size(mm) /40HQ(SKD) | 1860 X 570 X 870 / 75PCS |
