Specifications
Prod Model: |
pit bike 120cc air-cooled |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Engine Type: |
120cc Air-Cooled Single-Cylinder Four-Stroke |
Bore And Stroke: |
52.4mm*55.5mm |
Compression Ratio: |
9.0:1 |
Starting: |
Kick |
Final Drive: |
#420 Chain;15t/41t |
Front Tire: |
60/100-14 |
Rear Tire: |
80/100-12 |
Net Weight: |
70.55kgs |
Fuel Capacity: |
5.5L |
Rake: |
24°(Anteversion Angle) |
Starting System: |
Kick Start and Electric Start |
Certification: |
ISO9001 |
Engine: |
4 Stroke |
Displacement: |
51-125CC |
Condition: |
New |
Fuel: |
Gas / Diesel |
Cylinder Quantity: |
1 |
Product Description

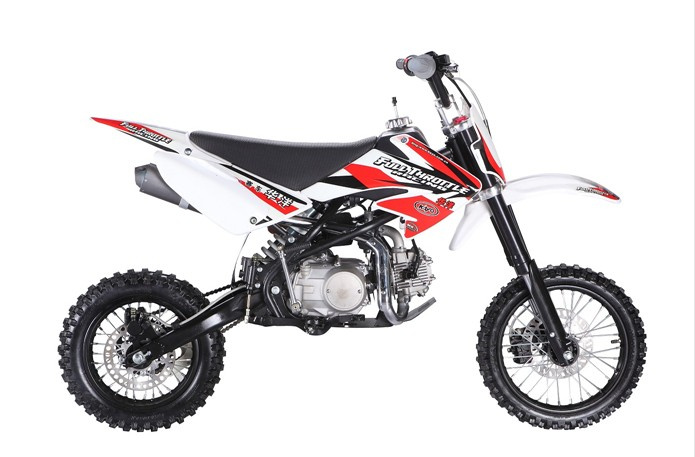

2014 hot selling pit bike 120cc air-cooled
1. Stroke: 4 stroke
2. Ignition: CDI electronic ignition
3. Starting: Kick
4. Brake type: Dum brake
- ENGINE |
Engine Type |
120cc air-cooled single-cylinder four-stroke |
Bore And Stroke |
52.4mm*55.5mm |
Compression Ratio |
9.0:1 |
Ignition |
CDI electronic ignition |
Valve Train |
2 valves |
Starting |
Kick |
- DRIVE TRAIN |
Transmission |
Four-speed |
Final Drive |
#420 chain;15T/41 |
- CHASSIS / SUSPENSION / BRAKES |
Front Suspension |
USD Forks; 110mm of travel |
Rear Suspension |
Single-shock 360mm; 59mm of travel |
Front Brake |
210mm hydraulic disc with two piston caliper |
Rear Brake |
200mm hydraulic disc |
Front Tire |
60/100-14 |
Rear Tire |
80/100-12 |
- DIMENSIONS |
Rake |
24°(Anteversion Angle) |
Trail |
905mm |
Wheelbase |
1205mm |
Seat Height |
830mm |
Net Weight |
70.55kgs |
Fuel Capacity |
5.5L |
Ground Clearance |
310mm |
