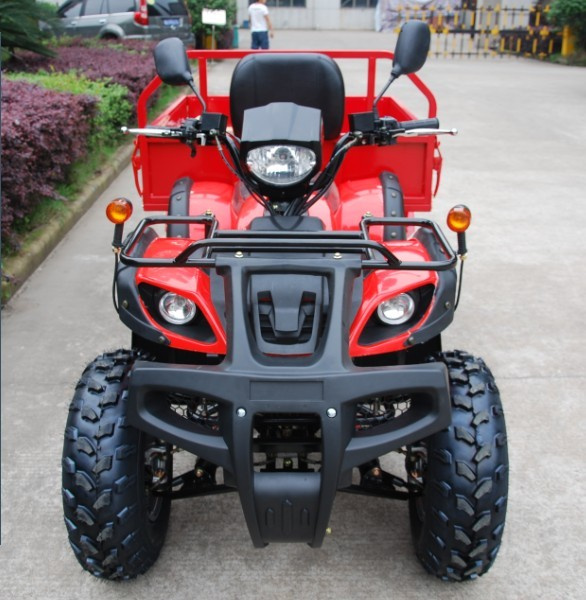

200cc Farm ATV
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 20/Piece |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | LZA200-F |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transmission System: | Chain Drive |
| Transmission Type: | Automatic |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Displacement: | 200CC |
| Structure: | Without Door |
| Maximum Speed: | 50-75 km/h |
| Brake Type: | Disc Brake |
Product Description
1. Engine type: GY6-150cc, 200cc, 4 storke2. Max torque: 10Nm/5500rpm/12Nm/5500rpm
3. Max power: 9.3kw/7500rpm 10.4kw/7500rpm
4. Ignition type: CDI
5. Transmission: Automatic with reverse gear
6. Brake (Front/Rear): Disc/Disc
7. Starting system: Electric start
8. Battery spec: 12V, 9AH
9. Front suspension details: Double A x swing arm
10. Rear suspension details: Mono shock swing arm
11. Front tire spec: 21X7-10 rear tires spec: 22X10-10
12. Vehicle dimensions: 250x100x118cm
13. Wheel base: 1400mm
14. Seat height from ground: 79cm
15. Ground clearance: 100mm
16. Load capacity: 350kg
17. Fuel tank capacity: 8L
18. Gross weight in carton: 220kg
19. Net weight: 200kg
Conveyance:
14pcs/20ft 28pcs/40ft
