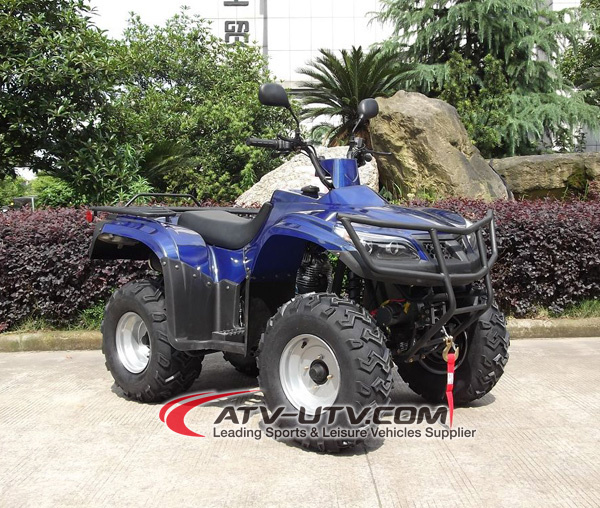

200cc ATV with Water-Cooled Engine (AT2002-B)
| Price: | US $ 1467.24-1573.94/Piece |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 5/Piece |
| Pay Type: | T/T,Western Union,Paypal,Money Gram |
Specifications
| Prod Model: | AT2002-B |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ignition Type: | Cdi |
| Transmission: | Manual Clutch, 4-Speed, Reverse Gear, Chain |
| Brake (Front/Rear): | Disc/Disc |
| Starting System: | Electric Start |
| Load Capacity: | 165kgs |
| Transmission System: | Chain Drive |
| Transmission Type: | Automatic |
| Certification: | CE |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Displacement: | 200CC |
| Structure: | Without Door |
| Maximum Speed: | 50-75 km/h |
| Brake Type: | Disc Brake |
Product Description
ATVCE Approved 200CC ATV Equipped with Powerful water-cooled Engine
AT2002-B
Key Specifications:
Wheel number: 4
Piston displacement: 200cc
Engine type: Single cylinder, water-cooled
Starting system: Electric
Fuel tank capacity: 11L
Drive train: Chain
Ignition method: CDI
Max. Power 10.0kw/7, 500rpm, 11.0kw/7500rpm
Max. Torque: 13.5N. M/5, 500rpm, 17.5N. M/5, 000rpm
Brakes: (Front/Rear)Disc
Transmission: Manual clutch, 4-speed, reverse gear, chain
Battery spec: 12V, 9AH
Front suspension detail: Double A X swing arm
Rear suspension detail: Mono shock swing arm
Wheel side: Front: 23X7-10, rear: 22X10-10
Vehicle dimension: 208X124X113cm
Wheel base: 116cm
Seat height from ground: 90cm
Min. Ground clearance: 115mm
Loading capacity: 165kgs
Package: Iron cage with carton outside
Net weight: 206kgs
Gross weight: 226kgs
Carton size: 194X109X84cm/1PC
Container: 12PCS/20', 24PCS/40', 36PCS/40'HQ
