Specifications
Prod Model: |
AT2007 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Chain Driving Power Transmission: |
Cdi Ignition Mode |
Powerful Water Cooling Engine: |
CE Approved |
Wheel Number: |
4 |
Transmission System: |
Chain Drive |
Transmission Type: |
Automatic |
Certification: |
CE |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Displacement: |
200CC |
Structure: |
Without Door |
Maximum Speed: |
50-75 km/h |
Brake Type: |
Disc Brake |
Condition: |
New |
Brand: |
Mademoto |
Power: |
200cc |
Product Description

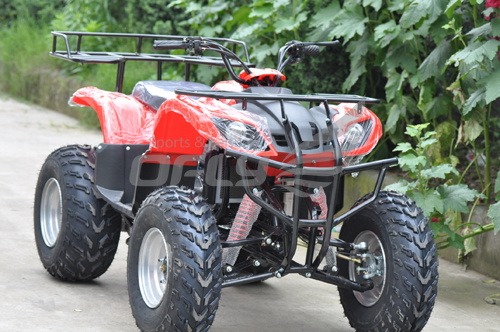

ATV
CE Approved 200CC ATV Equipped with Powerful Air Cooling Engine
AT2007
Key Specifications:
Wheel number: 4
Piston displacement: 200cc
Fuel tank: 4.5 liters
Fuel type: unleaded gasoline with octane no. 91 or higher
Engine type: single cylinder, air-cooled
Starting system: electric
Drive train: chain
Ignition method: CDI
Output: max. 10.0kw/7,500rpm
Torque: 13.5N.m/6,500rpm
Brakes: front: drum, rear: disc
Transmission: four gears with reverse and manual clutch
Wheel side: front: 21x7-8, rear: 20x9.5-8
Reserve: inner reverse gear
Min. ground clearance: 125mm
Max. load: 100kg/220lbs
Max. speed: >60km/h,37miles/h
Climbing ability: <20 degrees
Wheelbase: 1,050mm
Seat height: 780mm
Package: Carton Packing
Net weight: 150kgs/330lbs
Gross weight: 173kgs/381lbs
Carton size: 158x84x76cm/1pc
Container: 28pcs/20',57pcs/40',67pcs/40'HQ
Special Features:
Chain Driving power Transmission
CDI Ignition mode
Powerful Air Cooling engine
