Specifications
Prod Model: |
BK-200W |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Western Europe |
Certification: |
CE |
Transmission System: |
Chain Drive |
Engine Type: |
4 Stroke |
Structure: |
Multi-door |
Transmission Type: |
Manual |
Displacement: |
200CC |
Product Description

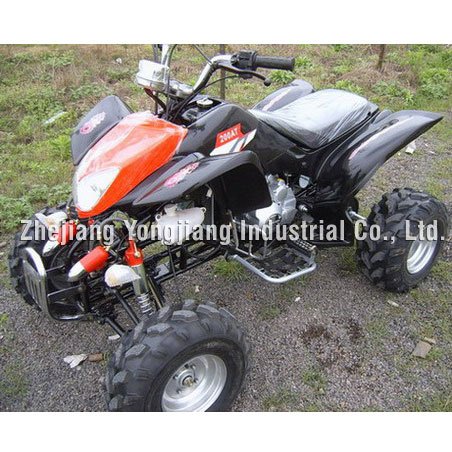

Model:BK-200W (water cooled,double arm)
Features:
1) Engine type: single cylinder, water-cooled, 4-stroke
2) Max. speed (km/h): 90
3) Transmission system: chain drive
4) Piston displacement (ml): 200cc
7) Maximum power: 12.5/8000
8) Maximum torque (Nm/rpm): 15.0/6000
9) Starting system: only electric start
10) Seat height (mm): 720
11) Ground clearance (mm): 110
12) Brake (front/rear): drum/disk
13) Front tire: AT 19 x 7-8/2.9psi
14) Rear tire: AT 18 x 9.5-8/2.9psi
15) Ignition type: CDI
16) Fuel tank capacity (L): 4.5
17) Fuel no.: RQ 90
18) Lubrication type: pressure, splash
19) Idling/turning speed (rpm): 1500
20) Front suspension: wishbone suspension
21) Rear suspension: mono-shock swing arm
22) Climb capability: 30
23) Engine oil capacity (L): 0.9
24) Parking brake: mechanical lock
25) Battery: 12V 9Ah
26) Gear oil capacity (L): 0.11
27) Rider capacity: 1 person
28) Rear track (mm): 760
29) Front track (mm): 810
30) Compression ratio: 10.16:1
31) Cylinder arrangement: single cylinder
32) Axle base (mm): 1110
33) Lubrication: press splash
Conveyance: 29PCS/20'FCL 64PCS/40'FCL 66PCS/40'HQ
