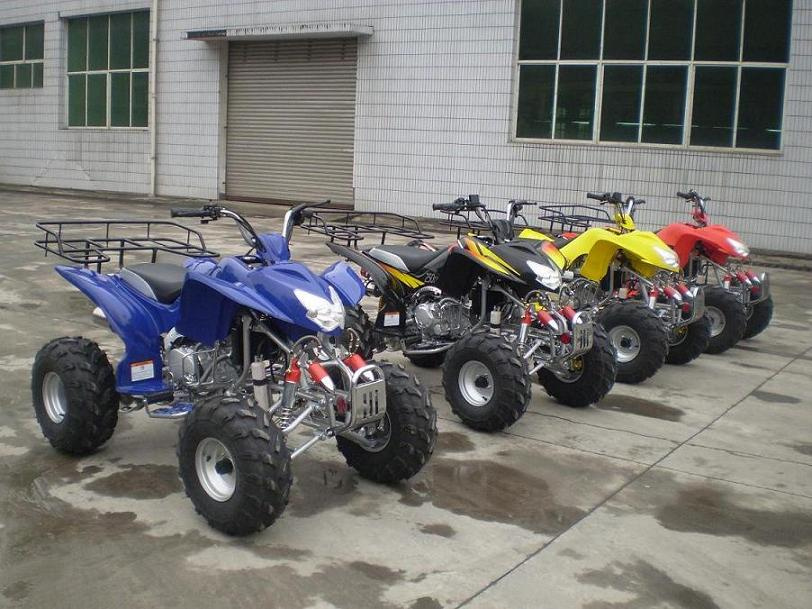

200CC/250CC ATV, Water-cooling (SJ200ST-B)

Specifications

Prod Model:	SJ200ST-B

Product Description

Model: SJ200ST-B

Main Feature: 200cc, water-cooling, manual clutch, electric start, inner reverse gear, non-rotary gear, chain drive, double swing arm, front drum & rear disc brake, front air-chamber shock absorber, higher and wider tyre.

Specifications:
Engine Type: 200cc, Single-Cylinder, Water-Cooling, 4-Stroke
Clutch: Manual Wet Multi-Plate
Ignition Method: C. D. I.
Start Method: Electric
Transmission: Chain
Displacement(ml): 196
Bore*Stroke(mm): 63.5*62
Compression ratio: 9.2: 1
Rated Power(kw/r/min): 11/7500
Maximum torque(N. M/r/min): 13/6000
Lubrication: Splash
Gear: 4 Forward Gear With Reverse Gear
Dimensions(L*W*H)(mm): 1880*990*1080
Wheel Base(mm): 1000
Seat Height(mm): 770
Min. Turning Radius(mm): 2400
Min. Ground Clearance(mm): 140
Brake: Front Drum & Rear Disc
Front Wheel: 21*7-8
Rear Wheel: 20*9.5-8
Fuel Tank Capacity(L): 5
Engine Oil Capacity(ml): 900
Climbing Capacity: 20
Max. Load(kg): 150
Net Weight(kg): 150
Gross Weight(kg): 160
