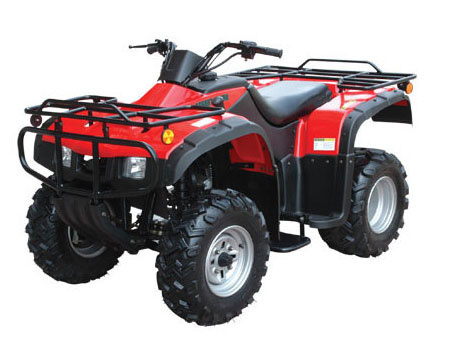

200CC, 250CC ATV Manual Clutch with EPA Approval

Specifications

Prod Model:	SL200ATV-4

Product Description

Engine type :196cc,4 storke
bore and stroke :63.5x62.2
Bitmap compression rating :9.2:1
max torque :13.5Nm/5500rpm
max power :10Kw/7500rpm
Ignition: CDI
transmission :manual clutch,4-speed,reverse gear,Chain/shaft
Brake (Front/Rear):Drum/DRUM
starting system :Electric start
battery spec :12V,14AH
Front suspension: Double arm, air shock absorber
rear suspension details :mono shock swing arm
front tire spec : 21 x 8-10
rear tires spec : 22 x 11-8
vehicle dimensions :185x104x113cm
wheel base :1160mm
seat height from ground :90cm
load capacity :165kg
fuel tank capacity :11L
ground clearance :155mm
G.W./N.W.: 240kg/220kg
Packing size: 197*111*88cm
Conveyance:
Qty/20' GP: 12 units
Qty/40' GP: 24 units
Qty/40' HQ: 36 units
Colour: red, blue, green, black, yellow , green camouflage, blue camouflage,
Maple leaf camouflage, USA stars&stripes
