Home Jinhua Senli Vehicles Co., Ltd. 200CC, 250CC Air-Cooled Manual Clutch ATV with EPA Approval

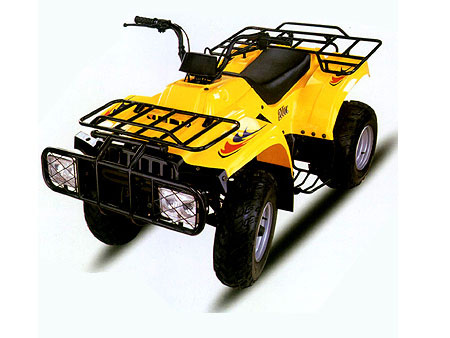

200CC, 250CC Air-Cooled Manual Clutch ATV with EPA Approval
| Price: | Negotiable |
|---|---|
| Min Order: | 1 |
Specifications
| Prod Model: | SL200ATV-2 |
|---|
Product Description
Engine type: 196cc,air-cooled,4-stroke,single cylinderCompression ratio:9.2: 1
Bore and stroke: 63.5*62.2mm
Max torque and Rotate Speed: 13.5N.m/6500r/min
Max. power and rotation speed: 10kw/8000rpm
Starting system:electric starter
Transmission:manual clutch, speed with reverse, chain/shaft drive
Brake(front/rear):drum/drum
Tire(front):21x 8-10
Tire(rear):22 x 11-8
Dimensions:1900 x 1040 x 1100mm
Ignition type:C.D.I
seat height:90cm
wheel base: 1200mm
Max. load: 165kg
G.W./N.W.:230KG/210KG
Front suspension:Double A-arm with air shock absorber
Rear suspension: monoshock swing arm
packing size: 194*106*87mm
Conveyance:
Qty/20' GP: 12 units
Qty/40' GP: 24 units
Qty/40' HQ: 36 units
Colour: red, blue, green, black, yellow , green camouflage, blue camouflage,
Maple leaf camouflage, USA stars&stripes
