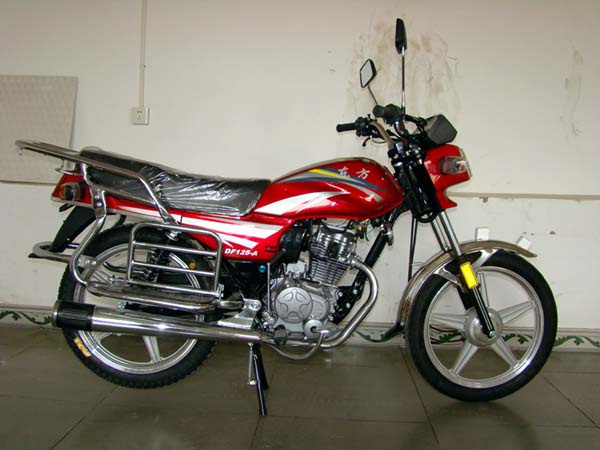

Home Dongfang Lingyun Vehicle Made Co., Ltd. 150CC Motorcycle
Specifications
| Prod Model: | 150-5 |
|---|---|
| Type: | Racing Motorcycle |
| Engine Type: | 4-Stroke |
| Certification: | CCC |
| Displacement: | 126-250CC |
Product Description
Dimension ((L× B× H mm): 2060*730*1080Wheel base (mm): 1300
Min. Ground Clearance (mm): 160
Dry Weight: 117kg
Height Of Seat (mm): 800
Fuel Tank Capacity(L): 14
Engine Type: Single-cylinder, air-cooled, four-stroke
Engine model: 156FMI/162FMJ
Bore× Stroke: 56.5mm*49.5mm/62mm*49.5mm
Displacement: 124ml/149.4ml
Maximum Power: 8.2kw/8500r/min/10kw/8500r/min
Maximum Torque: 9.0N. M/7500r/min/11N. M/7500r/min
Clutch: Wet multi-plate
Lubrication: Pressure/splash
Start: Kick start/electric start
Ignition: C. D. I
Transmission: 5 gear
Max. Speed (km/h): 80km/h/90km/h
Economical Fuel Consumption (l/100km): ≤ 2.1L/100km/2.2L/100km
Front Type Size and Air Pressure: 2.75-18 42P/225KPa/1.4× 18"
Rear Type Size and Air Pressure: 3.00-18 47P/275KPa/1.6× 18"
Climbing Ability (° ): ≥ 18°
Exhaust Index: (working condition): CO≤ 5.5g/km HC≤ 1.2g/km NO≤ 0.3G/km
Start Performance: ≤ 15s
Braking system (front/rear): Drum
Brake Performance: UP TO EU STANDARD
