Specifications
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Start-up: |
Manual Start-up |
Transmission: |
Chain |
Displacement: |
150CC |
Certification: |
CE |
Product Description

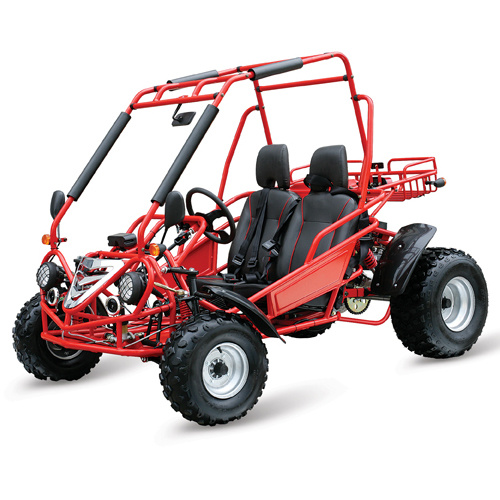

150CC Go Kart
Engine Type: 4-stroke, 1-cylinder, air-cooled
Displacement: 150CC
Max Power (kw/rpm): 7/7500
Max Torque (Nm/rpm): 8/4500
Starting: Electric
Ignition: C. D. I
Lubrication: Pressure and Splash
Compression Ratio: 10: 1
Transmission: CVT with reverse
Final Drive: Chain
Front/Rear Brake: Hydraulic disc/hydraulic disc
Max Speed (Km/h): 50
Fuel Capacity (L): 7
Battery: 12V9Ah
Wheel Base (mm): 1580
Front / Rear Tire: 19x7-8 /22x11-10
Seat Height: 460
Mini Ground Clearance (mm): 160
Net/ Gross Weight (kgs): 200/215
Capacity Weight (kg): 165
Product Size (mm): 2220x1330x1520
Carton Size (mm): 2205x1195x800
20GP/ 40HQ: 8PCS / 30 PCS
