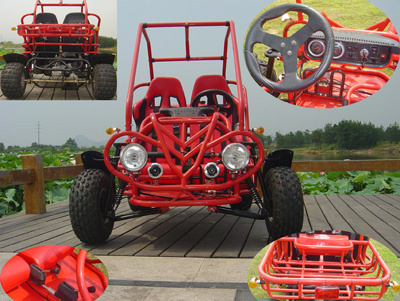

150CC Go Kart (FY-GC-222)

Specifications

Prod Model:	FY-GC-222

Product Description

FY-GC-222
Features:
1) Engine type: fan-cooled, 4-stroke
2) Engine capacity: 150cc
3) Bore stroke: 57.4 x 57.8mm
4) Displacement: 149.6ml
5) Compression ratio: 9:5:1
6) Carburetor: PD04
7) Output power: 5.6kW/7,500rpm
8) Maximum torque: 7.2N.m/6,000rpm
9) Staring: electric
10) Ignition: CDI
11) Lubrication: pressure and splash
12) Transmission: automatic (CVT system)
13) Spark plug: C7HSA (NGK)
14) Plug gap: 0.6-0.7mm
15) Fuel type: RQ90 (unleaded)
16) Lubrication: 15W/40
17) Front / rear brake: hydraulic disc, left foot control
18) Front tire: 19 x 7-8
19) Rear tire: 18 x 9.5-10
20) Front track: 1,160mm (45.7")
21) Rear track: 1,000mm (39.4")
22) Front suspension: independent dual A-arm
23) Rear suspension: swing arm / double hydraulic pressure shock absorber
24) Safety system: dual 4-point safety belt
25) Final drive chain: (KMC) O-ring chain
26) Fuel tank: 5L
27) Idle speed: below 5s
28) Battery: 2V, 10A
29) Climbing: 20 - 30 degrees
30) Headlight: 12V, 15W
31) Tall light: 12V, 15W
32) Fuse: 10A
33) Brake track: below 7m (30km/h)
34) Top speed: 60km/h (or limited as customer required)
35) Size of appearance: 2,100 x 1,360 x 1,450mm

Packing:
Carton dimensions: 2,180 x 1,180 x 800mm
N.W.: 250kg
G.W.: 280kg

Conveyance:
Qty/20' FCL: 12pcs
Qty/40' HQ: 30pcs
