Specifications
Prod Model: |
UTV150 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Optional |
Transmission System: |
Chain Drive |
Transmission Type: |
Automatic |
Certification: |
ISO9001 |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Displacement: |
150CC |
Structure: |
Two Side Doors |
Maximum Speed: |
50-75 km/h |
Brake Type: |
Disc Brake |
Condition: |
New |
Power: |
>1000W |
Brand: |
Junma |
Product Description

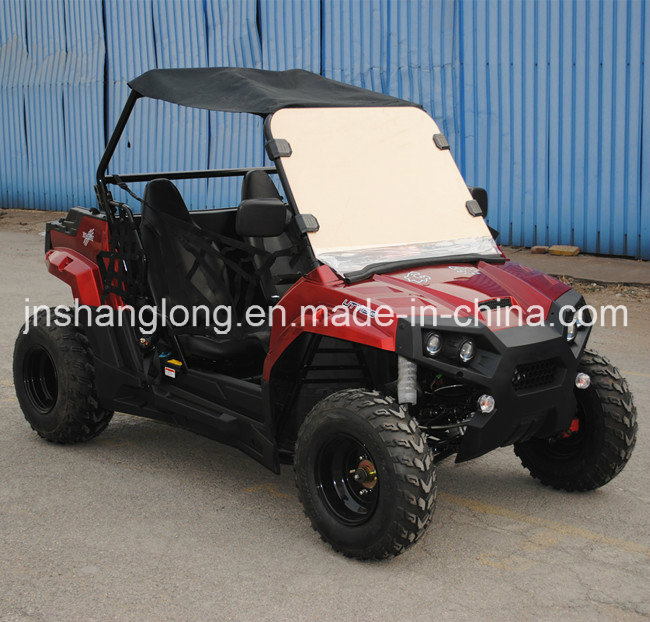

Our 150CC UTV has gained the certification of EEC and EPA. Our UTV can be
Registered and driven on public roads.
Our UTV is a long type one which is more suitable for adults. It has the configurations
Of windshield, speedometer, rearview mirrors, horn, left/right signal lights, sun roof and large wheels.
Our market covers Western Europe, America, Brasil, Mexico, Canada, South Africa, Middle East and Southeast Asia.
We are now looking for business partners who would like to share profits with us.
Welcome your join!
Item | Specification |
Engine type | Single cylinder, 4-stroke, CVT |
Displacement | 149.6CC |
Bore x stroke | 57.4mmX57.8mm |
Compression ratio | 9.5:1 |
Ignition | CDI |
Cooling system | Air/Oil cooled |
Starting system | Electric |
Vehicle dimension | 2435mm x 1290mm x 1397mm |
Cargo bed | 410mm x 852mm x 220mm |
Wheelbase | 1800mm |
Front tread | 1020mm |
Rear tread | 965mm |
Ground clearance | 152mm |
Seat height | 500mm |
Dry weight | 245kg |
Maximum rider weight | 68kg(each rider) |
Fuel capacity | 9.5L |
Cargo bed load capability | 150kg |
Towing capability | 2000lb |
Final Drive | Chain |
Shift type | F/N/R |
Brake system front/rear | Foot Activated,4-wheel hydraulic disc |
Suspension | F:Single A-arm; R: dual shock swing arm |
Steering | Gear box |
Wheel rim | 10 inches |
Tire | 22 inches |
Top speed | 55km/h |
Packing Size | 2290mmx1300mmx855mm |
Waterproof | 0.2m |
Max climbing gradient | 15° |
Min opernation temperature | -20°C |
Max opernation temperature | 40°C |
Max torque and rotate speed | 9.8N.m(4000r/min) |
Rated power and rotate speed | 6.8kw(5500r/min) |
Gas consumption/100km | 3.5L |
