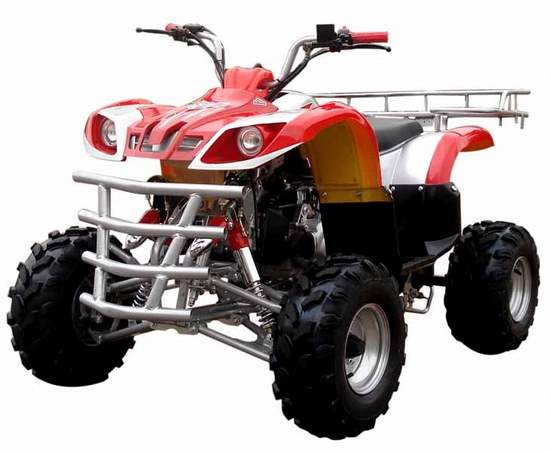

150cc Automatic ATV (QY150ATV-B)

Specifications

Prod Model:	QY150ATV-B

Product Description

1. Engine type: GY6-150CC, 4 storke
2. Bore and stroke: 62x49.5
3. Compression rating: 9.2: 1
4. Max torque: 10Nm/5500rpm
5. Max power: 9.3kw/7500rpm
6. Ignition type: CDI
7. Transmission: Automatic
8. Brake (Front/Rear): Drum/Disc
9. Starting system: Electric start
10. Battery spec: 12V, 9AH
11. Front suspension details: Double A x swing arm
12. Rear suspension details: Mono shock swing arm
13. Front tire spec: 19x7-8
14. Rear tires spec: 18x9.5-8
15. Vehicle dimensions: 155x88x95cm
16. Wheel base: 1000mm
17. Seat height from ground: 75cm
18. Ground clearance: 100mm
19. Load capacity: 140kg
20. Fuel tank capacity: 4.5L
21. Gross weight in carton: 160kg
22. Net weight: 140kg
23. Packing size: 147x83x77cm
33PCS/20ft 66PCS/40ft
66PCS/40'HQ
