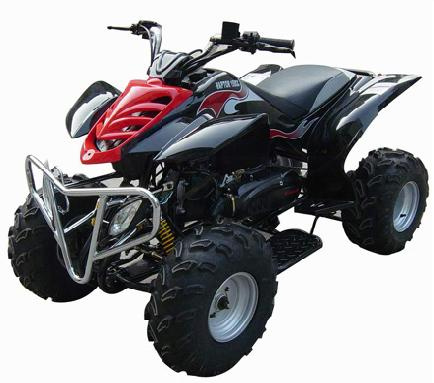

150cc ATV (XW-A13)

Specifications

Prod Model:	XW-A13

Product Description

Product Description
XW-A13
1) Engine type: 4-stroke, air-cooled
2) Max. speed: 75km/h
3) Max. load capacity: 120kg
4) Cylinder arrangement: single cylinder
5) Transmission system: chain drive
6) Bore x stroke: 52.4 x 49.5mm
7) Displacement: 150cc
8) Compression ratio: 9.1: 1
9) Drive: chain drive
10) Max. power: 5.25/7, 500kW/rpm
11) Max. torque: 8.0/7, 500N. m/rpm
12) Starter system: electric starter
13) Lubrication: auto
14) Transmission: automatic/MANUAL
15) Min. turning radius: 2, 400mm
16) Brake: drum/disc
17) Front tire: 19 x 7-8/2.9psi
18) Rear tire: 18 x 9.5-8/2.9psi
19) Ignition type: CDI
20) Fuel tank capacity: 7.8L
21) Engine oil capacity: 0.95L
22) Parking brake: mechanical lock
23) Battery: 12V, 9Ah
24) Ground clearance: 100mm
25) Dimensions: 1, 540 x 860 x 950mm

Outer packing:
Carton dimensions: 1, 465 x 850 x 760mm
N. W.: 135kg
G. W.: 150kg

Conveyance:
Qty/20' FCL: 30pcs
Qty/40' HQ: 66pcs

Model: ATV150-K
