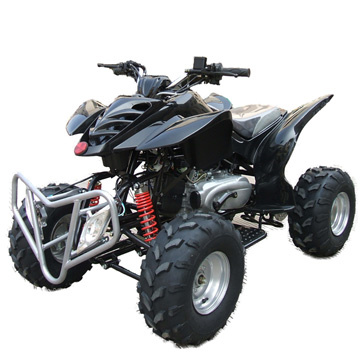

Home Zhejiang SBP Industry Co., Ltd. 150CC ATV (SBP-ATV150B)
Specifications
| Prod Model: | SBP-ATV150B |
|---|
Product Description
Model No: SBP-ATV150B1) Engine style: Single cylinder, air-cooled, 4-stroke
2) Bore x stroke: 57.4 x 57.8 (mm x mm)
3) Lubrication: Pressure / splash
4) Max. Power: 7.0 / 7000+/-150 (Kw/r/min)
5) Max. Torque: 8.8 / 5500+/-150 (N. M/r/min)
6) Ignition: C. D. I.
7) Starting type: Electric
8) Oil consumption: ≤365g/kW
9) Clutch
10 )Transmission: CVT, can be made with reverse gear
11) Dimensions (L x W x H): 1, 625 x 860 x 960mm
12) Tyre and rim: A) Front: 19 x 7-8 b) Rear: 18 x 9.50-8
13) Brake style: A) Front: Drum b) Rear: Disk
14) Absorber style: A) Front: Independent hanging b) Rear: Middle absorber
15) Oil tank capacity: 7.5L
16) Climbing ability: ≥25 degree
17)Packing dimensions (L x W x H): 1, 485 x 835 x 780mm
18)N. W.: 125kg G. W.: 145kg
19)Conveyance: Qty/20": 30 units Qty/40": 66 units
