Specifications
Prod Model: |
QWATV-08B |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Tyre Size: |
8 Inches |
Maximum Speed: |
>75 km/h |
Fuel: |
Gas / Diesel |
Certification: |
CE |
Transmission System: |
Chain Drive |
Engine Type: |
4 Stroke |
Transmission Type: |
Automatic |
Displacement: |
150CC |
Brake Type: |
Drum Brake & Hydraulic Disc Brake |
Structure: |
off Road |
Product Description

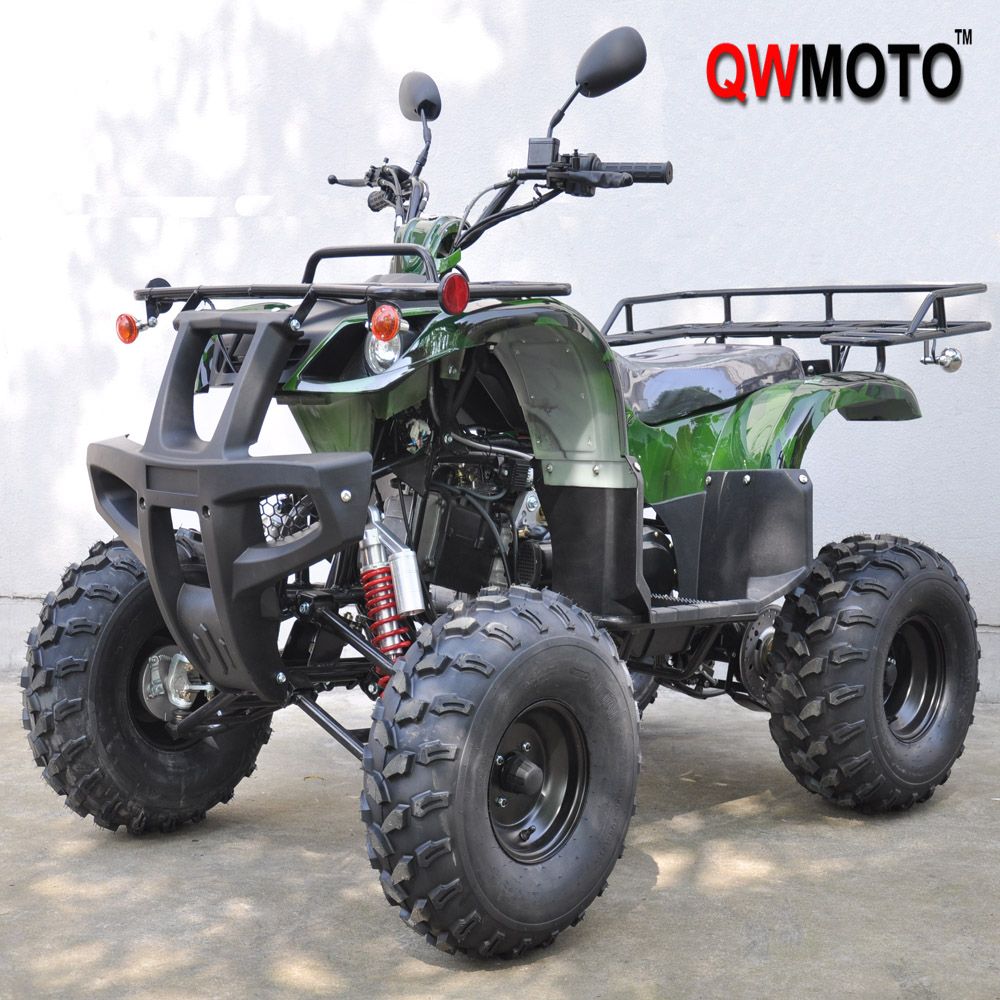

150CC ATV/150CC Quad Bike/150CC ATV (QWATV-08B) with Rear Rack
Model No: QWATV-08B
Engine: 150CC GY6 Air-cooled
Displacement: 150ml
Bore * stroke: 67/64.8mm
Compression ratio: 9.2: 1
Ignition: CDI
Transmission: Automatic with 1 Reverse
Start: Electric Start
Clutch: Automatic Clutch
Gearbox: 1 forward & reverse
Final drive: Chain 428
Frame: Steel
Swing arm: Steel swing arm
Suspension Front: Dual A arm spring shocks
Suspension Rear: Large rear shock
Front Tire: 19/7.00-8
Rear Tire: 18/9.5-8
Front Brake: Drum brakes
Rear Brake: Hydraulic disc brake
Fuel Capacity: 4.0L (Metal Tank CAP)
Seat Height: 750mm
Color Choices: Black, red, blue, yellow etc
Products Size: 1850*1070*1040 mm
Packing Size: 1470*840*770 mm
Packing Materials: Carton / metal frame / bubble bag
20FCL: 22 PCS
40HQ: 63 PCS
N. W: 135kgs
G. W: 155kgs
