Home Guangzhou CBB Battery Technology Co., Ltd. 12V 150ah/20hr Electric Scooter Golf Car Batteries/Electric Bike Rickshaw Parts

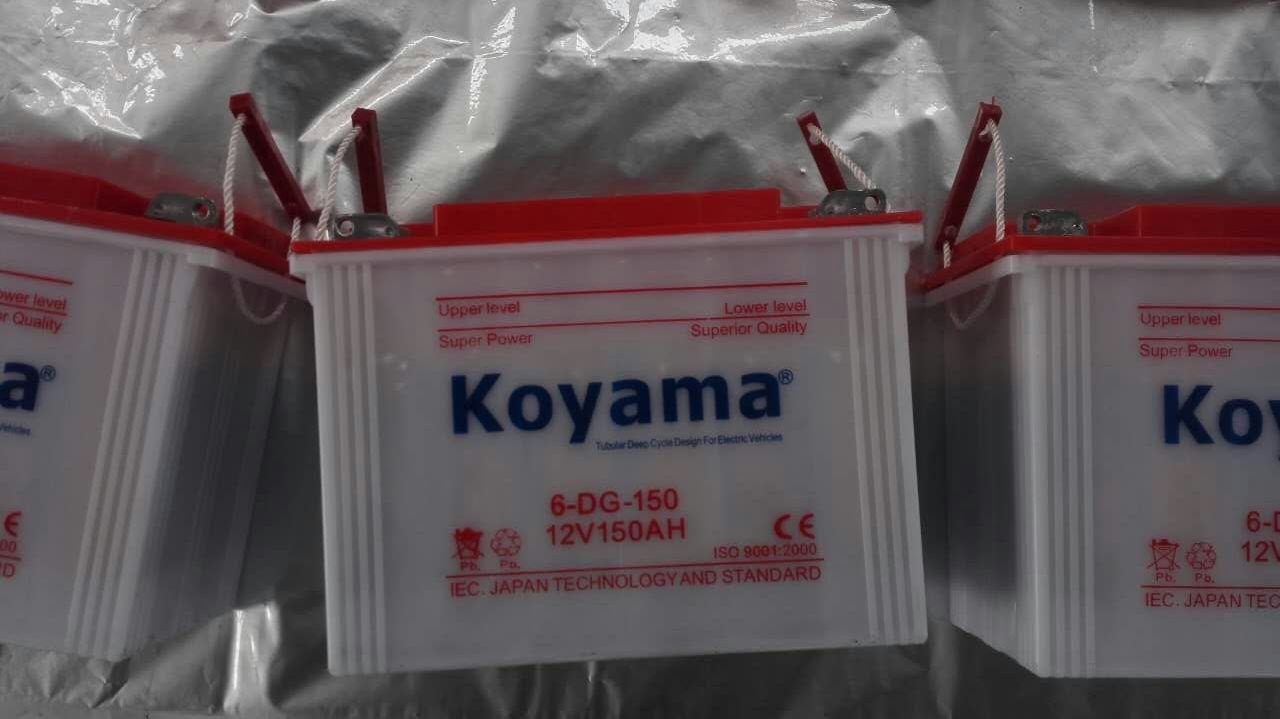

12V 150ah/20hr Electric Scooter Golf Car Batteries/Electric Bike Rickshaw Parts
| Price: | US $ 75.04/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 50/Piece |
| Pay Type: | T/T,Western Union |
Specifications
| Prod Model: | 6-DG-150 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shape: | Square |
| Brand Name: | Koyama |
| Color: | Red |
| Battery Type: | Dry Charged Electric Rickshaw Battery |
| Plate: | Tubular Plate |
| Wet Weight: | 31.25kgs |
| Applications: | Rickshaw/Tricycle/Electric Vehicles |
| Nominal Capacity: | 150ah/20hr |
| Dry Weight: | 20kgs |
| Warranty: | 6 Months |
| Type: | Lead-acid Battery |
| Rated Voltage: | 12V |
| Charging Type: | Constant Current |
| Wet Shelf Life: | 2~3Year |
| Discharging Type: | Constant Current |
| Electrolyte: | Acid Battery |
| Certification: | CE |
| Charging Voltage: | 12.65V |
| Brand: | Koyama |
Product Description
SpecificationModel No: 6-DG-150
Rated Voltage:12V
Nominal Capacity:150Ah/20hr
Dimension(mm): 361*172*245mm
Dry weight:20
Wet weight:31.25
Chacteristics:
-Excellent energy storage capacity combined with high reliability
-700 Cycles at 75%DOD
-Tubular plate construction consisting of a lead calcium alloy
-High cycle service life
-Better temperature resistance performance
-Excellent deep cycle performance
-Superior low current discharge performance
-Better charge acceptability
-Better safety performance and reliability
-High Performance price/ratio and low yearly operating cost
-Non-Spillable construction design
-Low self discharge characteristic
Application of battery:
This kind of battery is largely deing used in tricycles, golf cars, the four wheels electric transportation cars in the airport and electric sigtseeing cars etc.
The specification can be customized according to your request.
| Model | Rated Voltage (V) | Rated Capacity (5HR) | Rated Capacity (20HR) | Plates | Dimension(mm) | Weight with acid(kg) | Weight withou acid(kg) | ||
| (pcs) | Length | Width | Height | ||||||
| 6DG-130 | 12 | 12V80AH | 130 | D30+5/5- | 361 | 172 | 245 | 29.75 | 19.5 |
| 6DG-140 | 12 | 12V85AH | 140 | D30+6/5- | 361 | 172 | 245 | 30.5 | 20.5 |
| 6DG-150 | 12 | 12V95AH | 150 | D30+6/6- | 361 | 172 | 245 | 31.25 | 21 |
| 6DG-160 | 12 | 12V110AH | 160 | D30+8/7- | 361 | 172 | 276 | 34 | 26 |
| 6DG-170 | 12 | 12V120AH | 170 | D30+9/8- | 362 | 172 | 276 | 36.5 | 27.8 |
