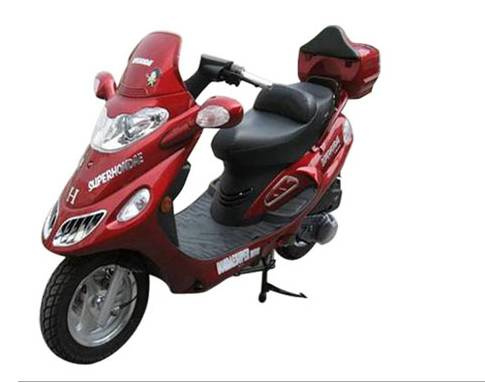

125cc Scooter with EEC (YG125E-7)

Specifications

Prod Model:	YG125E-7

Product Description

Engine:
1) Engine model: YB152QMI
2) Engine style: single cylinder, air-cooled, 4-stroke
3) Bore x stroke: 52.4 x 57.8mm
4) Ignition: CDI
5) Lubrication: pressure / splash
6) Max. power: 4.6kW / 6,500rpm
7) Max. torque: 7.5N.m / 5,500rpm
8) Impression ratio: 9.2 ±0.5:1
9) Starting type: electric / kick
10) Max. speed: 80km/h
11) Oil consumption: less than 367g/kWh
12) Max. noise: 77dB
13) Clutch: wet type, multi-plate

Scooter:
1) Dimensions: 1,985 x 690 x 1,155mm
2) Wheel base: 1,380mm
3) Gross weight: 135kg
4) Dry weight: 116kg
5) Transmission type: strap
6) Tire and rim (front / rear): 130/60-13 / 130/60-13
7) Brake style (front / rear): disc / drum disc
8) Absorber style: independent hanging
9) Displacement: 125ml
10) Oil tank capacity: 6 ± 0.5L
11) Climbing ability: more than 15ºC
12) Max. load: 150kg
