Home Yongkang Bifei Vehicle Co., Ltd. 125cc Off-Road Dirt Bike (New Design with Swing Arm)

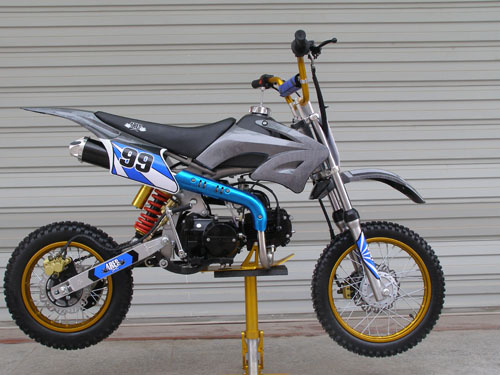

125cc Off-Road Dirt Bike (New Design with Swing Arm)
| Price: | Negotiable |
|---|---|
| Min Order: | 1 |
Specifications
| Prod Model: | BFD-125 |
|---|
Product Description
Specifications:1) Vehicle:
A) Dimensions (L x W x H): 1, 665 x 780 x 1, 050mm
B) Wheelbase: 1, 175mm
C) Min. Ground clearance: 280mm
D) Fuel capacity: 4L
E) Dry weight: 65kg
F) Max. Load capacity: 150kg
G) Max. Speed: ≥85km/h
H) Brakes (front / rear): Disk / disk
I) Tires (front / rear): 2.50-14" / 3.00-12"
J) Seat height: 770mm
K) Front suspension: Telescopic fork
L) Rear suspension: 3, 800lbs press rear shock
M) Climbing ability: ≤40
N) Colors: Pink, yellow, green, black, red, blue, white, purple
2) Engine:
A) Engine type: 125cc, 2-valve, 1-cylinder, air-cooled, 4-stroke
B) Bore x stroke: 54 x 54mm
C) Piston swept volume: 124ml
D) Compressing ratio: 10.1: 1
E) Max. Torque: 8.8N. M / 7, 500 - 8, 000rpm
F) Max. Power and speed: 8.2kW / 8, 600/590rpm
G) Idle speed: 1, 300/100rpm
H) Clutch type: Moist
I) Starting method: Kick/electrical
J) Lubrication way: Press and splash
K) Ignition: CDI
L) Transmission: 4-speed manual clutch (1-N-2-3-4)
M) Drive train: Chain
N) Min. Fuel consumption: 354g/kW/h
Outer packing:
Cartons with steel cage
Carton dimensions: 1, 445 x 420 x 665mm
N. W.: 63kg
G. W.: 78kg
Conveyance:
Qty/20' FCL: 63pcs
Qty/40' FCL: 128pcs
Qty/40' HQ: 152pcs
