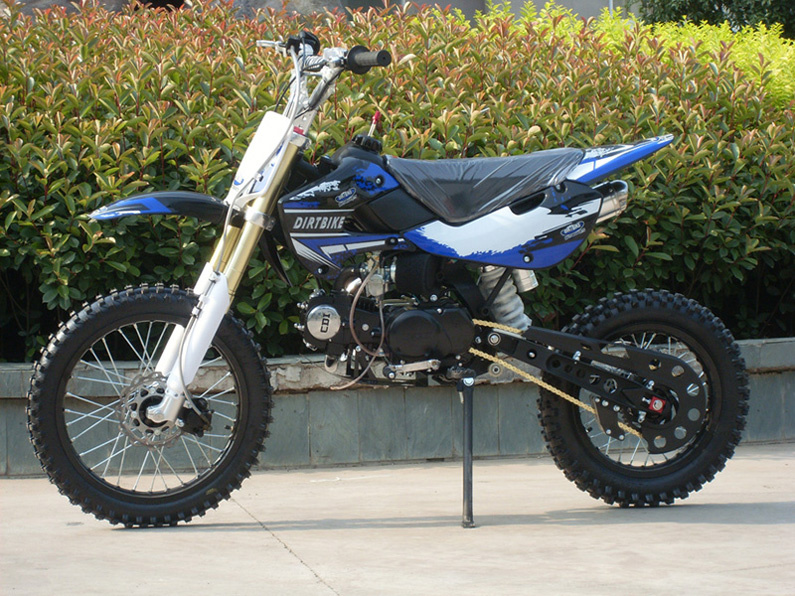

Home Zhejiang Hardware Industrial Co., Ltd. 125CC Dirt Bike (HD-dB04)
Specifications
| Prod Model: | HD-DB04 |
|---|---|
| Certification: | CE |
| Starting System: | Kick Start and Electric Start |
| Engine: | 4 Stroke |
| Displacement: | 51-125CC |
Product Description
Model No.: HD-dB04Specification
ENGINE MODEL: 125CC, air-cooled, 1-cylinder, 4strokes, manual clutch.
Start model: Kick start
Frame: Chromolly twin pipe extended frame with bolt on sub frame and cradle
Swing Arm: Heave duty steel swing arm
Front Suspension: Good up-side down forks
Rear Suspension: Good performance rear shock absober
Rear Wheel: STEEL rim with aluminium alloy hub assembly. Heavy duty spokes(32).
High tensile 15mm axle.
Tyre, (front/rear): 17"/14"
Handle bars/grips: Steel handle bar.
Controls: NEW style Aluminium alloy brake & clutch levers.
Triple clamps: Silver aluminium alloy tipple clamp assembly.
Front brake: Front hydraulic disc brakes, circle rotors, braided lines.
Rear brake: Chromolly brake pedal. Rear hydraulic disc brakes, circle rotors,
Braided lines.
MIKUNI carb pz-26
G. W. /N. W.: 75/70 kgs
Seat height: 860mm.
Wheel Base: 1200mm.
Dimension: 1740*645*1110mm
Carton size: 1550*445*880mm
Container: 60PCS/20'ft, 120PCS/40'ft, 120PCS/40'HQ
