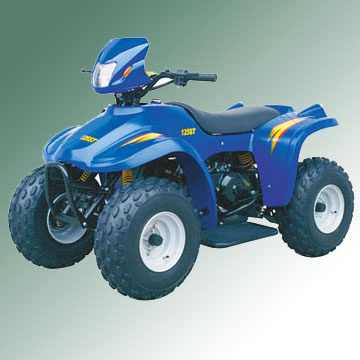

125CC ATV (ATV-002)

Specifications

Prod Model:	ATV 002

Product Description

Atv 002
Atv 125cc
Specifications:
1) Engine Type: Single Cylinder, 4 Strokes, Air-Cooled
2) Engine Displacement: 124.65ml
3) Bore X Stroke: 52.4 X 57.8mm
4) Max. Power: 6.3/8,000km/R/Min
5) Max. Torque: 8/6,500r/Min
6) Minimum Fuel Consumption: 367 G/Kw/H
7) Start Mode: Electrical / Kick
8) Transmission Mode: Chain
9) Brake Mode: Drum/Disk
10) Brake Distance: 7m/30km
11) Shift Speed Type: Automatic
12) Clutch Mode: Automotive
13) Dimensions (L X W X H): 1,450 X 880 X 1,000mm
14) Minimum Turning Radius: 3,000mm
15) Climbing Degree: 30
16) Lamp: Head Lamp
17) Seat Height: 660mm
18) Minimum Ground Clearance: 120mm
19) Top Speed: 65km/H
20) Tyre Dimensions (Front/Rear): At19 X 7-8/At18 X 9.5-8
21) Cover Material: Glass Fibre Reinforced Plastic
22) Colors: Red, Blue, Yellow

Packing:
Carton Dimensions: 1,490 X 850 X 790mm
N.W.: 105kg
G.W.: 130kg

Conveyance:
Qty/20' Fcl: 30pcs
Qty/40' Fcl: 66pcs
Qty/40' Hq: 66pcs
