Home Jiayu Machinery Co., Limited 125cc 2014 Hot Model Gasoline Scooter (Ghost-125)

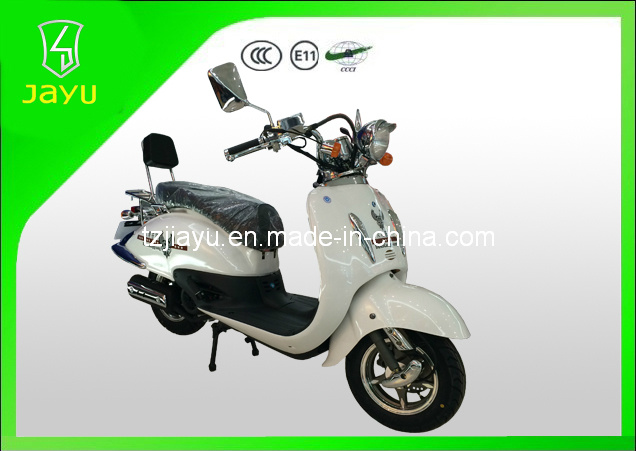

125cc 2014 Hot Model Gasoline Scooter (Ghost-125)
| Price: | US $ 490/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 26/Piece |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | JY125T-27 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | White, Yellow, Red |
| Engine: | 4 Stroke |
| Certification: | COC |
| Fuel Tank Capacity: | 5-8L |
| Folded: | Unfolded |
| Max Speed: | 85km/H |
| Displacement: | 150cc |
| Maximum Loading Capacity: | 150kg |
Product Description
Gasoline scooter 1. Powerful 4 stroke/ air cooled engine 2. Fully automatic CVT transmission for easy driving 3. Aluminum wheels fit for big person 4. Scooter gives safety and comfort for high speed cruising| Scooter body parameter | |
| MODEL | JY125T-27/JY150T-27 (Gust-125/150) |
| Dimensions (mm): | 1890 x 705 x 1190 |
| Wheel base (mm): | 1295 |
| Ground clearance (mm): | 115 |
| Dry weight / Load capacity: (kg) | 110 / 150 |
| Max.speed (km/h) : | 80 / 85 |
| Economic fuel consuption (1/100km/L) : | 2.8 / 2.9 |
| Exhaust system : | Mute exhaust |
| Fr brake / Rr brake : | disc/drum |
| Fr tyre / Rr tyre : | 120/70-12 |
| Fuel tank capacity (L) : | 5 |
| Battery | 12V 7AH / 12V 9AH |
| Ignition | CDI |
| Front suspension : | Spring shock |
| Rear suspension : | Spring shock absorber |
| Scooter Engine parameter | |
| Engine mode: | 152QMI / 157QMJ |
| Engine type | 1-cylinder,air-cooled, 4-stroke |
| Displacement (cc) : | 124.6 / 149.6 |
| Cylinder Diameter / Pinston Stroke | 52.4 x 57.8 ; 57.4 x 57.8 |
| Transmission system : | Belt CVT |
| Compression ratio | 10.3:1 |
| Start system : | kick / electric |
| Standard power(km/r/min): | 5.2/7500 ; 6.4/6500 |
| Max. torque(n.m/r/min): | 7.3/6000 ; 8.3/7500 |
| Packing information | |
| N.W / G.W (KG)/Packing model | 120 / 125; |
| Packing model | Full export carton package |
| Packing size(mm) /20GP(CBU) | 1860 X 570 X 1180 / 26PCS |
| Packing size(mm) /40HQ(SKD) | 1760 X 570 X 870 / 72PCS |
