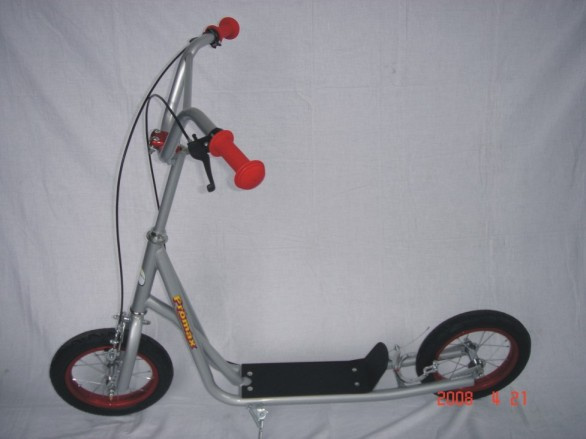

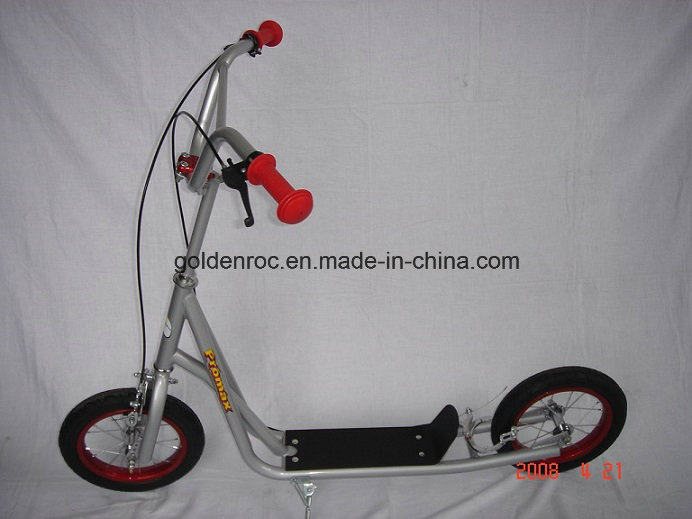

12" Steel Frame Kick Scooter (PB205)

Specifications

Prod Model:	PB205
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
12" Steel Painted Scooter:	12 Inches
Max Capacity:	50-100kg
Kind:	Double
Height Adjustment:	Height Adjustment
Color:	Black
Wheels:	2
Age:	Children
Body Material:	Alu+ Iron
Wheel Material:	Rubber
Certification:	CE
Condition:	New

Product Description

Model No.: PB205
Discription:
SPECIFICATION FOR SCOOTER (PB205)
1.Frame: steel frame,H/T:30*34*160mm,T/T:28mm,D/T:28mm,TIG welding,end:3/8"
2.Fork: 12"BMX,800# steel,1-1/8" blades,stem:25.4*22.2*191*85mm
3.Front Brake: caliper brake arm shoes:60L
4.Rear Brake: caliper brake arm shoes:60L
5.Brake Lever: 2.5F lever & clamp,plastic
6.Brake Cable: only 2P
7.Handlebar: steel,BMX U style W/crossbar W:480mm R:180mm
8.H/Stem: four bolts bird handlebar w/stem D:22.2,L:185
9.Grips: PVC mushroom,L:105mm
10.Pad Set: PVC 2PCS for handlebar and stem with customer's design
11.Rims: alloy front 12"*1.75"*16H,rear 12"*1.75"*16H
12.Front Hub: steel 3/8"*16H*14G*85W*120mm
13.Rear Hub: steel 3/8"*16H*14G*85W*120mm
14.Spokes: steel 14G w/steel nipple
15.Tires: front 12"-1/2"*2-1/4",rear 12"-1/2"*2-1/4", rubber tires
16.Tube: front 12"*1.75" ,rear 12"*1.75",A/V tube
17.H/Parts: steel set of 8PCS
18.Footplate: plastic 260mm*50mm,BK
19.Stand: 12" steel 3.0T H:105mm
20.Mudguard: nil
21.Bell: nil
22.Carton: 5-PLY for export yellow
