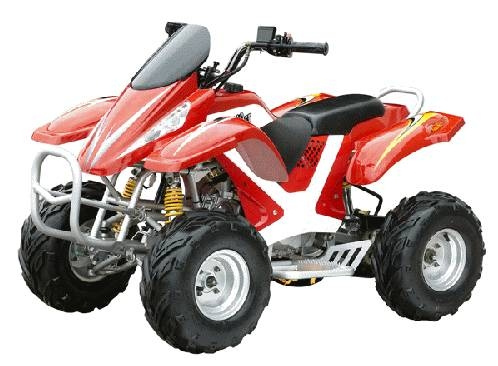

110CC Quad Bike with EPA (TS-ATV110-F)

Specifications

Prod Model:	TS-ATV110-F

Product Description

SPECIFICATIONS:

ENGINE Type: 4-stroke, single cylinder, air cooling
Displacement: 110cc
Max power: 6.0kw/8500rpm
Max torque: 7.0N. M/6500rpm
Lubrication: Pressure and splash
Compression: 9.1: 1
Ignition: C. D. I
Starting: Electric starter
TRANSMISSION: Stepless, automatic clutch, chain
Front/rear Supension: Double A-arm/ Swing arm
Front/rear Tire: 16*8-7/16*8-7
Brake: Rear Hydraulic disc
Parking: Rear brake
DIMENSION(L*W*H)(mm): 1520*780*940
Seat Height: 710mm
Turn Radius: 2200mm
Ground Clearance: 110mm
Max Speed: 50km/h
