Home Chongqing Beyond Special Vehicle Co., Ltd. 110cc Kids ATV Bullock (ATV-5 Series) with Chain Drive
110cc Kids ATV Bullock (ATV-5 Series) with Chain Drive
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,Western Union |
Specifications
| Prod Model: | BULLOCK |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transmission System: | Chain Drive |
| Transmission Type: | Automatic |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Structure: | Without Door |
| Maximum Speed: | <50 km/h |
| Brake Type: | Disc Brake |
| Displacement: | 50cc,70cc,90cc,110cc |
Product Description

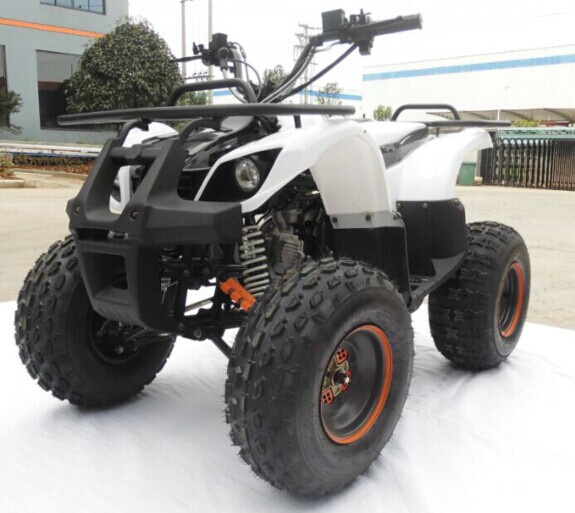

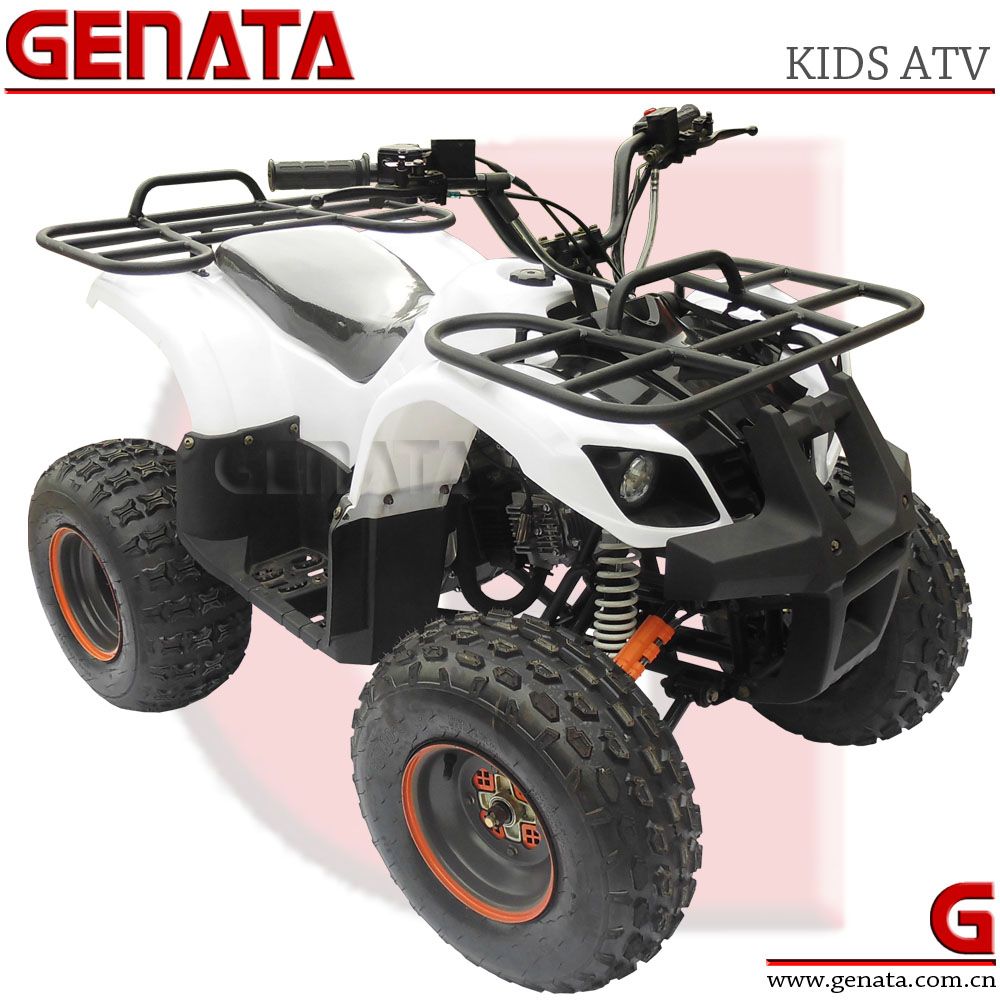

110cc Kids ATV BULLOCK (ATV-5 Series) with Chain DriveJapan GENATA brand made in China.
High quality and competitive price.
4-stroke,single cylinder,air-cooled engine with electric start engine.
Kinds of colors are optional.
| BULLOCK (ATV-5 Series) | |
| ENGINE | |
| Engine Type | 4-stroke,single cylinder,air-cooled |
| Displacement | 110cc |
| Max. Power (kw/rpm) | 5.2/8500 |
| Max. Torque (Nm/rpm) | 7.2/6000 |
| Starting | Electric |
| Ignition | C.D.I |
| Lubrication | Pressure and splash |
| Compression Ratio | 9.1:1 |
| Transmission | Automatic |
| Final Drive | Chain |
| CHASIS | |
| Front/Rear Brake | Three disc brake |
| Max. Speed (km/h) | 45 |
| Fuel Capacity (L) | 2.5 |
| Battery | 12V4Ah |
| Wheel Base (mm) | 915 |
| Front/Rear Tire | 16*8-7/16*8-7 |
| Seat Height (mm) | 600 |
| DIMENSION | |
| Mini. Ground Clearance (mm) | 105 |
| N.W./G.W. (kg) | 95/109 |
| Capacity Weight (kg) | 65 |
| Product Size (mm) | 1440*1030*960 |
| Carton Size (mm) |
1240*775*660 (7 inch) 1320*770*650 (8 inch) |
| Load Quantity |
36pcs/20'GP 112psc/40'HQ (7 inch) 75pcs/40'HQ(8 inch) |
| Optional Color | Red,yellow,blue |
