Specifications
Prod Model: |
DTR-8B |
Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East |
Model: |
Dtr-8b |
Seat: |
Gorgeourness |
Back: |
High Back Seat |
Driving Type: |
Motorized |
Body Type: |
Open |
Displacement: |
111-150cc |
Tricycle Wheel Distance: |
>1110mm |
Load Capacity: |
≤100kg |
Climbing Capability: |
12?? |
Certification: |
CE |
Folded: |
Unfolded |
Accessories: |
Rear Box |
Product Description

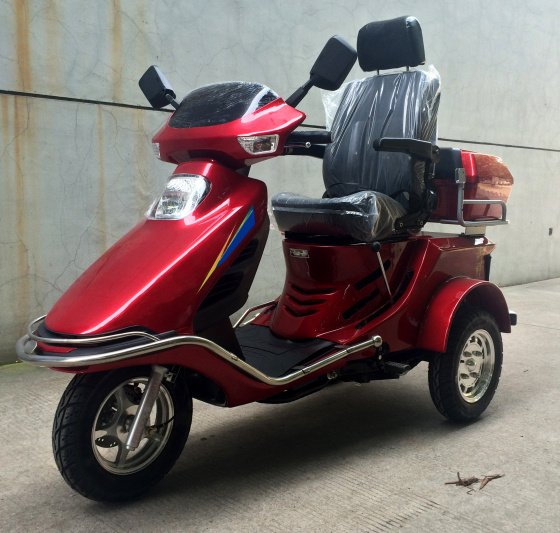

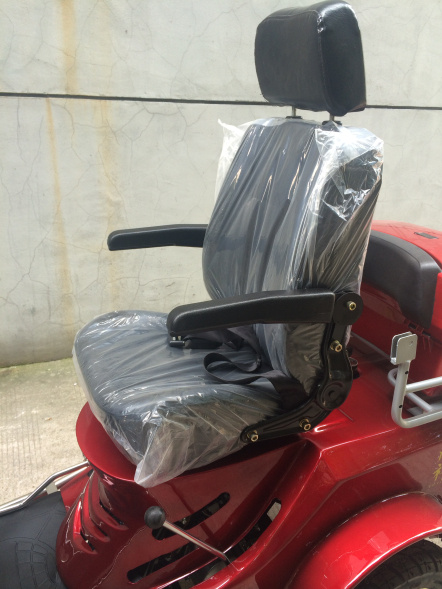

110CC High Back and Comfortable Seat Handicapped Scooter (DTR-8B)Dimension L*W*H( mm): 2000*740*1300
Engine Displacement (ml): 70/110, four stroke, single cylinder
Oil Consumption (L/100KM): 2.5
Wheel Base (mm): 1410
Track(mm): 640
Whole Weight (kg): 142
Max Load(kg): 150-200
Tire Size: F/R 3.50-10
Fuel tank Capacity(l): 5
Brake System: F/R Disc Brake
Transmission mode; Chain
Max Speed(km/h): 45-60
Start Way: Electric /Hand
Package and loading: 20FT/40HQ
21 /42UNITS SKD (STEEL FRAME+CARTON)
High Back and Comfortable Seat Handicapped Scooter/Handicapped Tricycle (DTR-8B)
Delivery time: 35 days after deposit
Dimension L*W*H( mm) | 2000*740*1300 |
Engine Displacement (ml) | 70/110 ,four stroke ,single cylinder |
Oil Consumption (L/100KM) | 2.5 |
Wheel Base (mm) | 1410 |
Track(mm) | 640 |
Whole Weight (kg) | 142 |
Max Load(kg) | 150-200 |
Tire Size | F/R 3.50-10 |
Fuel tank Capacity(l) | 5 |
Brake System | F/R Disc Brake |
Transmission mode | Chain |
Max Speed(km/h) | 45-60 |
Start Way | Electric /Hand |
20FT/40HQ | 21 /42UNITS SKD (STEEL FRAME+CARTON) |
