Home Jinhua SQ Motortech Co., Ltd. 110cc EEC & EPA UTV Truck for Farming Usage
110cc EEC & EPA UTV Truck for Farming Usage
| Price: | US $ 580/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 10/Piece |
| Pay Type: | T/T |
Specifications
| Prod Model: | 110NF |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: | Lifan or Other |
| Engine Type: | 4 Stroke |
| Displacement: | 110CC |
| Transmission System: | Chain Drive |
| Fuel: | Gas / Diesel |
| Brake Type: | Disc Brake |
| Maximum Speed: | <50 km/h |
| Certification: | EEC |
| Condition: | New |
| Transmission Type: | Manual or Automatic |
| Brand: | Shengqibao |
Product Description

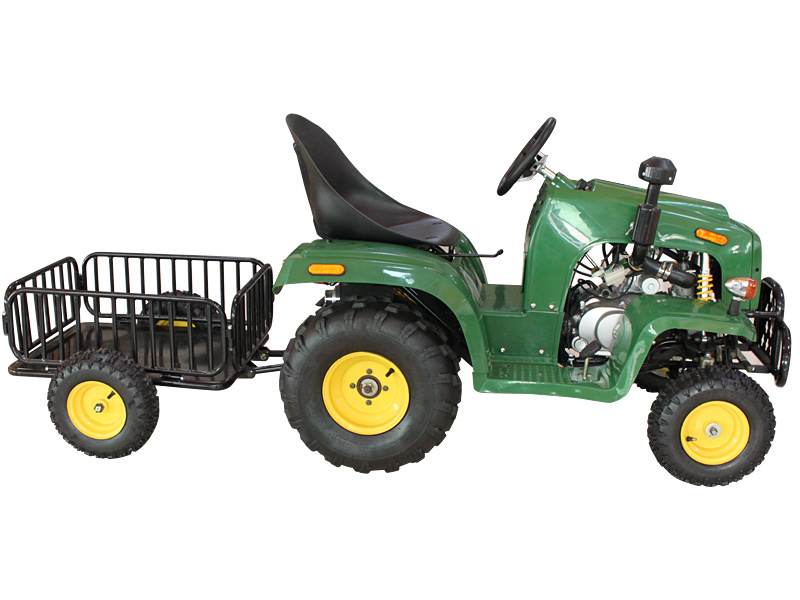

Our mini truck SQ110NF designed with the latest technology is suitable for recreation and competition. It is equipped with single-cylinder 4-stroke water-cooled engine and convenient electric start. It is fixed with front and rear shock absorber to improve comfort during driving. Its front wheel is fixed with drum type brake and its rear wheel with top quality hydraulic disk type brake to render safe and reliable braking.The car is deluxe, artistic, dynamic, and attractive.
| Product | UTV-Tractor | Model | SQ-110NF |
| Dimension(L*W*H) | 1320*70*80mm | Wheel Base | 860mm |
| Model of Engine | 152FMH | Tire Tread | front 790mm; rear 823mm |
| Bore*Troke | 52.4*49.5mm | Working Volume of the Cylinder | 107ML |
| Min. Ground Clearance | 80mm | Compression Ratio | 9.1: 1 |
| Diameter of Turning Circle | 3000mm | Min. Stable Idle Speed | 1500(+/-) 150r/min |
| Rated Power | 4.7kW /8500r/min | Integral Mass | 110kg |
| Max. torque | 6.5N. m/6000 (r/min) | Rated Loading Capacity | 200kg |
| Type of Carburetor | plunger type PZ24 | Highest Speed | 4 km/h |
| Type of Clutch | manual waterish multichip | Capacity of Fuel Tank | 6.5L |
| Type of Plug | A7RTC | Type of Shock Absorber (Front / Rear ) | Hydraulic shock absorber |
| Type of Vent Silencer | Cylinder type silencer | Tire(front/rear) | 19*7.00-8/13*7.00-6 |
| Transmission Mode | chain | Ignition Mode | CDI |
