Specifications
Product Description
Our company is a specialized manufacturer of 50cc, 110cc, 150cc, 200cc, 250cc, 260cc. Most are EPA/DOT approvedl. And parts of Quads with EEC/COC approval.

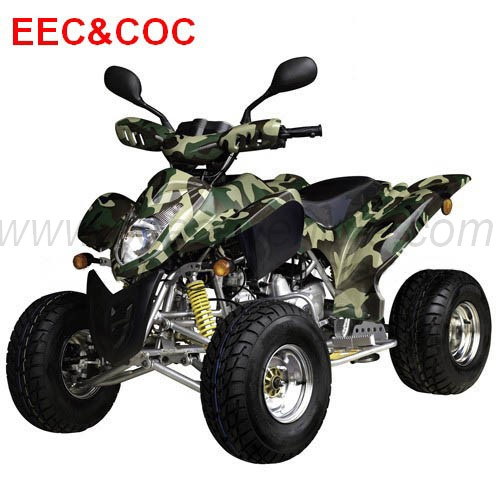

ATV110A-EEC:
Engine type: 1-cylinder, 4-stroke, air-cooled
Max power (kw/rpm): 5. 5/8500
Max torque (nm/rpm): 7. 5/5500
Compression ratio: 9. 1: 1
Lubrication: Pressure & spray
Ignition: C. D. I
Transmission: Chain 2wd, auto clutch with reverse
Front/rear suspension: Dual a-arm/ swing arm
Front/rear brake: Dual hydraulic disc/ hydraulic disc
Front/rear tire: At 19*7. 5-8/18*9. 5-8
Dimension(l*w*h)(mm): 1580*1000*1010
Seat height (mm/in): 710/28. 0
Ground clearance (mm/in): 110/4. 33
Fuel capacity (liter/gallons): 7/1. 9
Dry weight (kg/lbs): 135/297
Max speed: 55km/h
Container: 63pcs/40'hq
