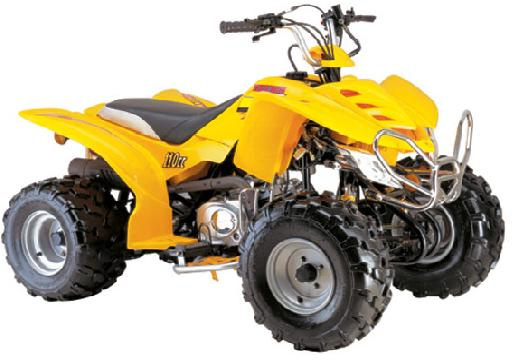

Home Yongkang Dingchang Industry & Trade Co., Ltd. 110CC ATV (XW-A12)
Specifications
| Prod Model: | XW-A12 |
|---|
Product Description
Model: XW-A101. Engine type: 110CC, single-cylinder,4-stroke,air cooled
2. Bore and stroke: 52.4 x 49.5
3. Compression ratio: 8.8:1
4. Max. torque: 6.5N.m/5,000rpm
5. Max. power: 4.7kW/7,500rpm Max.speed :60km/h
6. Ignition type: CDI
7. Transmission: automatic, chain, reverse gear
8. Brake (front/rear): disc/disc
9. Start: electric start
10. Battery spec.: 12V, 9Ah
11. Front suspension details: single arm, dual absorber
12. Rear suspension details: single absorber and swing arm
13. Front tire spec.: 21*7-10 or 8"
14. Rear tires spec.: 20*10-10 or 8"
15. Vehicle dimensions: 1850x1050x1000mm
16. Wheel base: 1,000mm
17. Seat height from ground: 75cm
18. Ground clearance: 100mm
19. Load capacity: 110kg
20. Fuel tank capacity: 7.8L
21. Gross weight in carton: 150kg
22. Net weight: 130kg
23. Packing size: 146 x 85 x 76cm
Conveyance:
Qty/20' FCL: 30PCS
Qty/40' FCL: 66PCS
Qty/40' HQ: 66PCS
