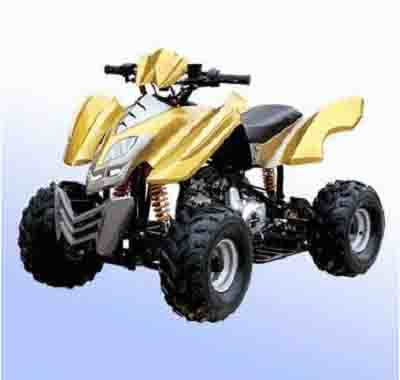

110CC ATV (RN-A110-C)

Specifications

Prod Model:	RN-A110-C

Product Description

Specifications:

1) Max speed: 45km/h
2) Climbing ability: >15 degrees
3) Max loading: 150kg
4) Distance between axles: 960mm
5) Distance between front wheels: 745mm
6) Distance between rear wheels: 740mm
7) Ground clearance: 125mm
8) Specification of front wheel: 16 X 8-6
9) Specification of rear wheel: 16 X 8-6
10) Engine: 110cc, single-cylinder, 4 strokes
11) Rated power and rotation speed: 4. 5kw/7, 500rpm approx
12) Max torque and rotation speed: 7. 2N. m/5, 000r/min
13) Compression ratio: 7: 1
14) Transmission: fully auto clutch and 4 speed semi auto
15) Starting system: electric start and kick start
16) Cooling system: air cooling
17) Oil tank: 3. 4L
18) Brake: rear disc brake
19) Dimensions: 1, 450 x 830 x 880mm
20) Carton: 130 x 74. 5 x65cm
21) GW/NW: 110/100kg
22) Qty: 96pcs/40HQ
