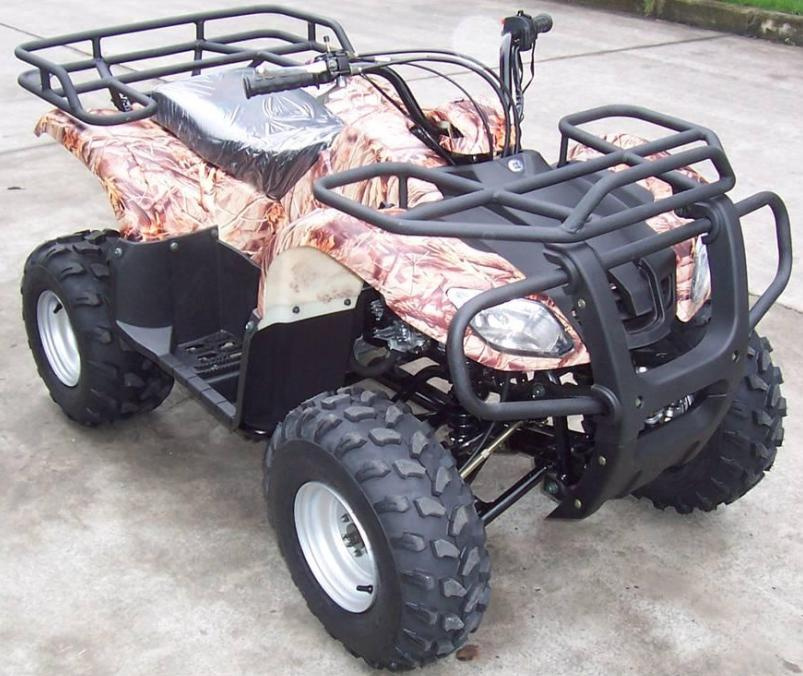

Home Swift Horse Machinery Co., Ltd. 110cc ATV, Doraemon (SH110ST-2C)
Specifications
| Prod Model: | SH110ST-2C |
|---|---|
| Displacement: | 110CC |
| Transmission Type: | Semi-Automatic |
| Engine Type: | 4 Stroke |
| Transmission System: | Chain Drive |
Product Description
Model No. SH110ST-2CEngine: 107CC air cooled, 4 stroke, single cylinder engine
Bore/Stroke: 52.4mm/49.5mm
Compression Ratio: 9.1: 1
Horsepower: 7.48HP@8000rpm
Torque: 7.2N. M@5500rpm
Fuel System: Carbureted
Lubrication: Pressure, splash
Ignition: CDI
Transmission: Chain Drive + (Reverse)
Gear Ratio: Three gear-shift
Final Drive: N/A
Dimensions
Overall Length: 1699mm(66.9in)
Overall Width: 960mm(37.8in)
Overall Height: 980mm(38.6in)
Seat Height: 718(28.3in)
Ground Clearance: 130mm(5.1in)
Wheelbase: 1079mm(42.5in)
Dry Weight: 148kg
Chassis
Suspension Front: Double swing arm unit suspension
Front Travel: 48mm(1.9in)
Suspension Rear: Central unit shock absorber suspension
Rear Travel: 43mm(1.7in)
Brakes Front: Drum Brake
Brakes Rear: Disc Brake
Tires Front: 19*7-8
Tires Rear: 19*9.5-8
Other
Fuel Tank Capacity: 6.6L, 1.7Gal
Color: Red, Green, Blue, Black, Yellow, Camouflage
Battery Type: 12V/7Ah
