Specifications
Prod Model: |
KQkart001D |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Transmission: |
Shaft |
Start-up: |
Electric |
Certification: |
EEC |
Displacement: |
1000cc |
Maximum Speed: |
85 Km/H |
Product Description
Specifications

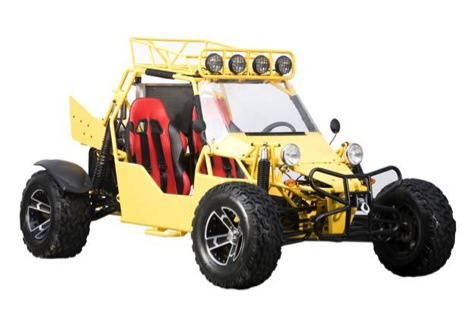

Water-cooled EFI 38.5KW/52HP 970cc engine go kart
Available 2seats/4seats
Available 1100cc engine.
Manual 2WD
--1000cc 2WD shaft drive go kart,
--water-cooled EFI 38.5KW/52HP engine
--manual gears drive with reverse, disc brake. 14"alloy rims standard state.
--EPA approved
--available 2seats/4seats
Go kart options:
Windshield
CD player and horn
Tail ball
Front mudguard
Front bumper
3000LBS winch
Right hand drive
5 forwards speeds with reverse, 1100cc Chery engine
specification: |
|
|
|
|
|
ENGINE |
Engine type |
EFI-DELPHI Electric start |
Bore*stroke |
65.5x78.0mm(2.6x3.1in) |
Displacement |
970cc |
Horse Power |
38.5kw 52HP |
Compression ratio |
8.8:1 |
FUEL SYSTEM |
Choke System |
Water-cooled |
Fuel capacity |
36L(9.36gal) |
DRIVETRAIN |
Driveline Type |
2WD |
Gear Selection |
4 forwards speeds with reverse |
Final Drive |
shaft |
SUSPENSION / BRAKES |
Suspension Front |
Independent double wishbone |
Suspension Rear |
Independent double wishbone |
Brakes Front |
Disk |
Brakes Rear |
Disk |
TIRES |
Front Tread |
1530mm(60.2in) |
Rear Tread |
1620mm(63.8in) |
Front & Rear tire size |
27x8-14/27x11-14 |
MISC |
Top speed |
85km/h(53MPH) |
Dry weight |
850kgs(1872.2lbs) |
Seat height |
560mm(22in) |
Wheelbase |
3200mm(126in) |
Vehicle dimension (L×W×H) |
4120 x 1940 x 1300mm |
Packing size |
3900x1160x1250mm(153.5x45.7x49.2in) |
Cargo bed load capability |
350kgs(770.9lbs) |
Steering |
Rack&pinion |
Towing capability |
3776N(850lbf/385kgf) |
Ground clearance |
300mm(11.8in) |
Loading information |
2 units/20 ″ ; 8units/40 ″ ; 16 units/40HQ (12units/40HQ 4seats) |
